Floor-standing lamp ENVIVA

extruded aluminumaluminumcontemporary

Short description

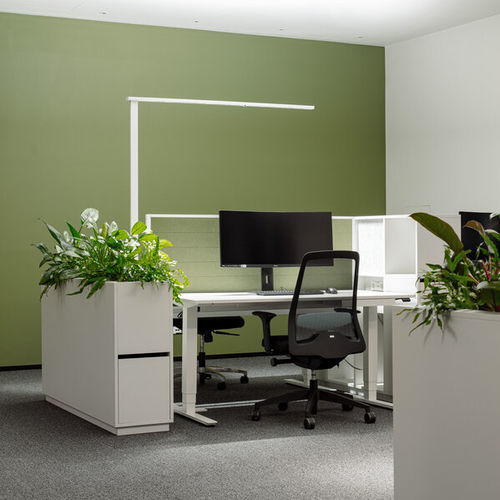

ENVIVA free standing is a floor-standing luminaire with an extruded aluminium profile in an angular, ultra-slim section (approx. 45 x 15 mm). Available as single or double configuration, it combines an asymmetric direct component with an indirect ceiling-wash component. Delivered with pedestal (recess for table base), integrated switch in the downpipe and a 3 m connection cable with safety plug. Stand-alone ESSENTIAL presence sensor included; IoT-capable version optional.

Quickinfo

• Correlated Colour Temperatures: 3000 K, 3500 K, 4000 K, TW (tunable white)
• CRI options: CRI ≥ 80, CRI ≥ 90; 3 SDCM
• UGR ≤ 16 / 65° ≤ 1500 cd/m²
• Free standing single: up to 12,700 lm | up to 167 lm/W
• Free standing double: up to 25,400 lm | up to 167 lm/W
• L90 @ 50,000 h
• Stand-alone ESSENTIAL sensor; presence detection range ø4.5 m on floor
• Cover: asymmetric louver

Colour

• Traffic white
• Jet black
• Aluminium raw

Availability
Available from Q4/26

Simple drawing
Simple drawing available for double configuration (drawing image provided on product page).

Light distribution
Direct/indirect asymmetric distribution: focused asymmetric direct beam via micro-faceted, aluminium‑vapourised reflector and homogeneous indirect ceiling illumination via integrated PCB and precision lens system.

Features & marketing highlights

• Compliant with DIN EN 12464-1: UGR ≤ 16
• IoT version available
• Asymmetric direct illumination for task lighting
• Ultra-slim 45 x 15 mm profile for minimal visual impact
• Optional sensor integration and presence detection
• High system efficacy up to 167 lm/W

Technical specifications

• Construction: extruded aluminium profile, angular design
• Dimensions (luminaire profile): approx. 45 x 15 mm
• Mounting: free standing with pedestal; pedestal includes recess for table base
• Finish: aluminium raw or powder coated
• Light source: LEDs with selectable CCT; CRI ≥ 80 or ≥ 90; 3 SDCM
• Direct light: reflector with micro-faceted, aluminium-vapourised surface and asymmetric radiation characteristic
• Indirect light: integrated PCBs with precision lens system for homogeneous ceiling illumination
• Optics: asymmetric louver cover (direct component)
• Photometric performance: single up to 12,700 lm; double up to 25,400 lm; up to 167 lm/W; UGR ≤ 16; 65° ≤ 1500 cd/m²
• Colour temperatures: 3000 K, 3500 K, 4000 K, tunable white (TW)
• Lumen maintenance: L90 @ 50,000 h
• Sensors: stand-alone ESSENTIAL sensor included (presence detection ø4.5 m on floor); optional sensor integration and IoT version available
• Controls: switch installed in the downpipe
• Electrical: includes connection cable (3 m) with safety plug
• Other: rectangular downpipe; available in single and double variants
