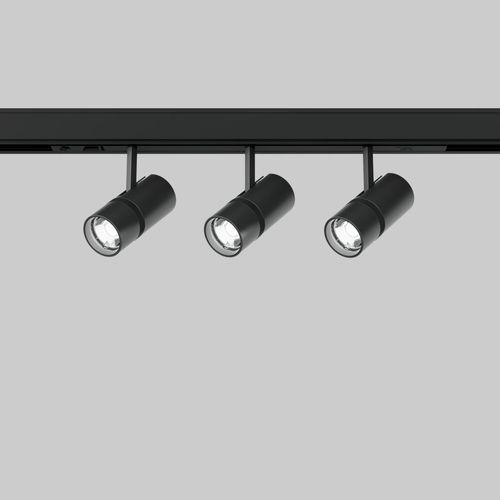

LED track light BO PRO

cylindricalcast aluminumdimmable

Quickinfo

• 2700 K, 3000 K, 3500 K, 4000 K
• CRI ≥ 90, 2 SDCM
• BO PRO 35 up to 2500 lm | 110 lm/W
• BO PRO 45 up to 4280 lm | 126 lm/W
• BO PRO 55 up to 4402 lm | 131 lm/W
• L85 @ 50 000 h
• DALI-2

Description
Track light made of die-cast aluminium; surface powder coated; spotlight head rotatable and tiltable; choice of single lamp, double lamps or triple lamp; converter in the adapter; high quality lens system; precise radiation characteristics with different beam angles; installed and exchanged without tools; good glare reduction due to recessed light point plane; optical attachments as accessories; COB (Chip on Board) technology for maximum efficiency; no multiple shadows; energy-efficient LEDs with very good colour rendering; adapter for toolless insertion or movement on a variety of 3-phase power tracks; adapter flush with the power track; available in white or black options.

Features

• Single, double or triple lamp options (only one adapter with 2 or 3 lamps)
• Converter integrated in the adapter
• 360° rotatable and 90° tiltable spotlight head
• High-quality lens system with precise radiation characteristics and multiple beam angles
• Good glare reduction due to recessed light point plane
• Optical attachments and changeable optics available as accessories
• COB LED technology for high efficiency and no multiple shadows
• Adapter allows toolless insertion/movement on various 3-phase power tracks; adapter flush with power track
• Installed and exchanged without tools

Colour options

• traffic white
• jet black
• aluminium raw

Light distribution

• spot
• medium
• flood
• wide flood

Availability
Available from Q2/27

Simple drawing
Simple drawing available (product family drawing / type overview).

Specifications

• Model / series: BO PRO
• Denominations: BO PRO 35 / BO PRO 45 / BO PRO 55
• Colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K
• Colour rendering: CRI ≥ 90
• MacAdam: 2 SDCM
• Lumen output: BO PRO 35 up to 2500 lm; BO PRO 45 up to 4280 lm; BO PRO 55 up to 4402 lm
• System efficacy (examples): BO PRO 35 ~110 lm/W; BO PRO 45 ~126 lm/W; BO PRO 55 ~131 lm/W
• Lifetime: L85 @ 50,000 h
• Dimming / control: DALI-2
• Light source: COB (Chip on Board) LEDs
• Material: die-cast aluminium
• Finish: surface powder coated (available in traffic white, jet black, aluminium raw)
• Optics: high quality lens system; changeable optics and optical attachments available
• Beam shapes: spot, medium, flood, wide flood; oval lens for oval light illumination
• Mechanical: spotlight head rotatable 360° and tiltable 90°
• Mounting: adapter for toolless insertion/movement on a variety of 3-phase power tracks; adapter flush with the power track
• Installation / maintenance: installed and exchanged without tools
• Electrical: converter integrated in the adapter
• Application notes: good glare reduction due to recessed light point plane; no multiple shadows; precise radiation characteristics for accent and general lighting
