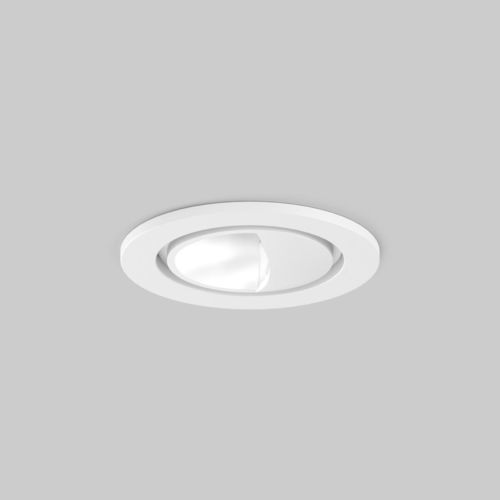

Recessed wall downlight SASSO 40

LEDroundIP20

Quickinfo

• 2700 K, 3000 K, 3500 K, 4000 K
• CRI ≥ 90 / 2 SDCM (initial MacAdam)
• Up to 109 lm/W
• L80 / 75,000 h
• DALI-2 or non DIM
• Front IP20

Description
Round recessed wallwasher designed for homogeneous wall illumination. Tool-free installation in the mounting set (trim or trimless) using a ball catch system. Lacquered surface finish. Usable in different housings including acoustic ceiling variants. Asymmetric light distribution achieved with a specially engineered asymmetrical reflector featuring a micro-faceted, aluminium-vapourised surface to avoid multiple shadows. High-efficiency LED engines with very good colour rendering.

Features

• Round recessed wallwasher design for homogeneous wall illumination
• Tool-free installation in mounting set (trim or trimless) via ball catch system
• Lacquered surface finish
• Available for installation in different housings (including acoustic ceiling variants)
• Asymmetric radiation characteristic with specially computed asymmetrical reflector
• High-quality micro-faceted, aluminium-vapourised reflector to avoid multiple shadows
• High-efficiency LED engines with very good colour rendering

Colours (examples from product page)

• traffic white
• jet black
• matt silver
• gold dust

Mounting set options

• traffic white
• jet black

Light distribution

• Wallwasher / wallwasher floor inset
• Asymmetric wallwashing characteristic

Installation / mechanical

• 60 mm recess depth (DIN rail)
• Trim or trimless options; trimless variants available for acoustic ceilings

Products and codes (excerpt)

• 048-2840017A 048-2896318 002-90740 — traffic white, mounting set jet black, 3000 K, fixture 7 W, 103 lm/W — DALI-2
• 048-2840017A 048-2896318 002-90744 — traffic white, mounting set jet black, 3000 K, fixture 7 W, 103 lm/W — non DIM
• 048-2840117A 048-2896318 002-90740 — traffic white, mounting set jet black, 4000 K, fixture 7 W, 103 lm/W — DALI-2
• 048-2840217A 048-2896318 002-90740 — traffic white, mounting set jet black, 3500 K, fixture 7 W, 107 lm/W — DALI-2
• 048-2840917A 048-2896318 002-90740 — traffic white, mounting set jet black, 2700 K, fixture 7 W, 109 lm/W — DALI-2
• 048-2840011A 048-2896318 002-90740 — jet black, mounting set jet black, 3000 K, fixture 7 W, 94 lm/W — DALI-2
• 048-2840014A 048-2896318 002-90740 — matt silver, mounting set jet black, 3000 K, fixture 7 W, 103 lm/W — DALI-2
• 048-2840019A 048-2896318 002-90740 — gold dust, mounting set jet black, 3000 K, fixture 7 W, 97 lm/W — DALI-2

Specifications

• Model name: SASSO 40
• Product type: round wallwasher, recessed, 1 lamp
• Nominal color temperatures: 2700 K, 3000 K, 3500 K, 4000 K
• Colour rendering: CRI ≥ 90
• Initial MacAdam: 2 SDCM
• Photometric characteristic: asymmetric wallwasher (special asymmetrical reflector)
• Efficiency: up to 109 lm/W (dependent on variant)
• Lifespan: L80 / 75,000 h
• Control options: DALI-2 or non DIM
• Front protection: IP20
• Typical fixture power: 7 W (varies by variant)
• Recess depth: 60 mm (DIN rail)
• Reflector: micro-faceted, aluminium-vapourised surface
• Installation: mounting set available for trim or trimless installation; tool-free mounting via ball catch system
