Surface-mounted light fixture VITA

recessed wallrecessedLED

Quickinfo

• Colour temperatures: 3000 K, 4000 K
• CRI options: CRI ≥ 90; CRI ≥ 97 / 3 SDCM (initial MacAdam)
• Luminous flux: up to 8,930 lm (depending on variant)
• Efficiency: up to 121 lm/W
• Lumen maintenance: L80 / 50000 h; L85 / 50000 h
• Dimming: DALI-2
• Optics: Linear prismatic cover with selectable foil
• Ingress protection: IP20

Description

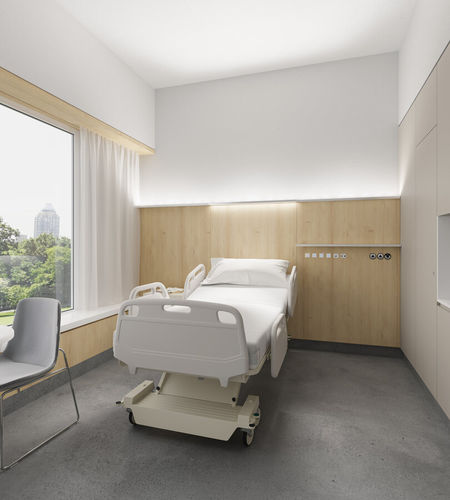

The luminaire housing, mounting channel and front cover are manufactured from an extruded aluminium profile in an angular, extremely slim design (25 mm). Available for direct, indirect or combined direct/indirect radiation. No visible screws; surface anodised. Optional housing version includes a medical standard device rail (MedGas compatible) for patient-room integration. Lighting module features a specially calculated asymmetrical high-gloss reflector and a linear prismatic cover with foil options to optimise control and ensure homogeneous illumination. Module in aluminium, powder coated, supplied with converter and designed for tool-free installation. Energy-efficient LEDs with high colour rendering are used.

Mounting & Installation

• Surface mounting
• Recessed mounting
• Wall mounting (system solutions available)
• Quick, tool-free module installation
• Optional standard rails for MedGas

Light distribution / Options
Direct, Indirect and Direct/Indirect variants available. Linear prismatic cover and selectable foil options allow adjustment of the direct/indirect ratio and the light distribution to suit task and room requirements.

Products and codes (excerpt)
099-9316037A | 3000 K, CRI ≥ 90, 115 lm/W, length 1,006 mm | DALI-2
099-9316137A | 4000 K, CRI ≥ 90, 119 lm/W, length 1,006 mm | DALI-2
099-9317037A | 3000 K, CRI ≥ 90, 117 lm/W, length 1,206 mm | DALI-2
099-9326037A | 3000 K, CRI ≥ 90, 114 lm/W, length 1,006 mm (indirect) | DALI-2
099-9911016 | END CAP (accessory) | -

Accessories (selected)

• Mounting channel (custom cut)
• Standard rail / master unit for patient-room integration
• Blind cover (custom cut or on site)
• Linear connector set, end caps, connectors and various modules (direct, indirect, direct/indirect)

Technical specifications

• Housing: extruded aluminium profile, angular version
• Housing thickness / slim design: 25 mm
• Surface finish: anodised; module powder coated
• Front cover: linear prismatic cover with foil (different light distributions)
• Reflector: specially calculated asymmetrical high-gloss reflector
• Mounting channel: included / optional; custom cut variants
• Medical compatibility: optional device rail for medical standard rails (MedGas compatible)
• Light sources: energy-efficient LEDs with high colour rendering
• Electronics: converter included
• Installation: module installation without tools
• Control: DALI-2 dimmable
• Protection class: IP20
• Lumen maintenance: L80 / 50000 h; L85 / 50000 h
• Available lengths: examples 1,006 mm and 1,206 mm (system modular lengths available)
• Colour temperatures: 3000 K, 4000 K
