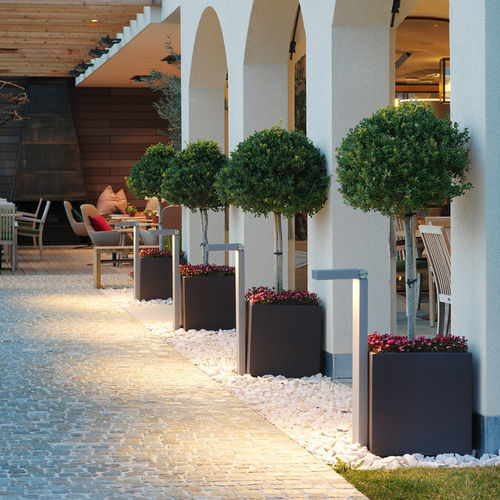

Urban bollard light STREAMCUT

for public spacesminimalist designaluminum

Quickinfo

• Correlated colour temperature: 3000 K
• CRI ≥ 80, optional CRI ≥ 90 / 3 SDCM (initial MacAdam)
• Photometric efficacy: up to 87 lm/W
• Lumen maintenance: L80 / 50,000 h; L90 / 50,000 h
• Dimming: non DIM
• Protection: IP65, IK07

Description
Bollard luminaire in aluminium with a simple, minimalist silhouette. The luminaire head incorporates integrated cooling fins and is adjustable by +/- 90°, lockable in 30° steps. Surface finish: anodised with dark grey powder coat. Mounting options include a screw-on base or an anchorage unit (accessory). The front is fitted with partially printed safety glass secured by stainless steel screws. Optical system provides an asymmetrical light distribution using a high-quality lens set; LEDs offer energy-efficient output with very good colour rendering. The enclosure includes a pressure-compensation valve and an optional surge protection (type 2, Iimp 3 kA). Suitable for ambient temperatures from -20°C to +50°C. Separate wiring compartment allows through-wiring for simplified installation.

Light distribution
Asymmetric

Products and codes
Status | Article number(s) | Type | Dimming
— | 088-281151DA | CRI ≥ 80, 87 lm/W | non DIM
— | 088-284151DA | CRI ≥ 90, 80 lm/W | non DIM
— | 088-281251DA | CRI ≥ 80, 87 lm/W (surge protection variant) | non DIM
— | 088-284251DA | CRI ≥ 90, 80 lm/W (surge protection variant) | non DIM

Accessories (selected)

• Anchorage unit — article number 088-2893110 (mounting accessory)

Technical specifications

• Housing material: aluminium
• Design: simple, minimalist bollard
• Luminaire head: integrated cooling fins; ±90° tilt; lockable every 30°
• Finish: anodised surface with dark grey powder coating
• Mounting options: screw-on base or anchorage unit (accessory)
• Glass: partially printed safety glass, fixed with stainless steel screws
• Optics: high-quality lens system providing asymmetrical distribution
• Light source: energy-efficient LEDs, CRI ≥ 80 or CRI ≥ 90
• CCT: 3000 K
• Photometric performance: up to 87 lm/W (varies by article)
• Lumen maintenance: L80 / 50,000 h; L90 / 50,000 h
• Dimming: non DIM (for listed variants)
• Ingress protection: IP65 (with pressure-compensation valve)
• Impact protection: IK07
• Surge protection: optional Type 2, nominal discharge current 3 kA (for designated variants)
• Ambient temperature range: -20°C to +50°C
• Electrical: separate luminaire wiring compartment; suitable for through wiring
• Weight/dimensions: refer to product codes / datasheets for each variant
