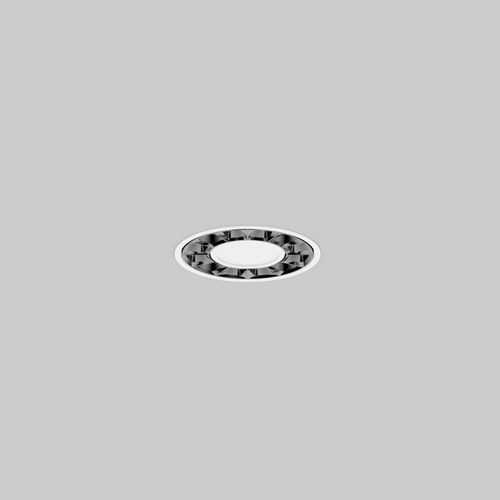

Recessed downlight MITA

LEDring-shapedIP20

Quickinfo

• Colour temperatures: 3000 K, 4000 K, tunable white 2700–6500 K
• CRI: CRI ≥ 80, CRI ≥ 90 / 3 SDCM
• UGR ≤ 19 (DIN EN 12464-1 in typical configurations)
• Efficiency: up to 139 lm/W (variant dependent)
• Lumen maintenance: L90 / 100000 h or L90 / 50000 h (depending on configuration)
• Dimming: DALI-2
• Covers: opal diffuser or reflector
• Protection class: IP20

Description
Ring-shaped luminaire housing in die-cast aluminium with extremely slim profile. Recessed mounting with trim suitable for ceiling thicknesses of 2–25 mm. Surface powder coated finish. High-gloss faceted reflector and opal diffuser options provide either directed high-efficiency light or uniform glare-controlled illumination. Energy-efficient LEDs with selectable colour rendering and tunable white options for dynamic lighting scenarios.

Features / Notes

• Trim variants: opal trim and reflector trim (reflector finishes: chrome, dark chrome, black)
• Suitable for plasterboard and modular grid ceilings; designed for easy installation and serviceability
• Light distribution: direct recessed
• Complies with DIN EN 12464-1 for UGR ≤ 19 in appropriate configurations
• Tunable white (2700–6500 K) available for dynamic ambience and circadian applications

Products and codes (examples of available variants)

• 074-8123037O — MITA circle 200 opal trim — traffic white, 3000 K, CRI ≥ 90, 97 lm/W — DALI-2
• 074-8123137O — MITA circle 200 opal trim — traffic white, 4000 K, CRI ≥ 90, 97 lm/W — DALI-2
• 074-8123537O — MITA circle 200 opal trim — traffic white, 3000 K, CRI ≥ 80, 101 lm/W — DALI-2
• 074-8123637O — MITA circle 200 opal trim — traffic white, 4000 K, CRI ≥ 80, 105 lm/W — DALI-2
• 074-8123037R — MITA circle 200 reflector trim — traffic white, reflector chrome, 3000 K, CRI ≥ 90, 129 lm/W — DALI-2
• 074-8123137R — MITA circle 200 reflector trim — traffic white, reflector chrome, 4000 K, CRI ≥ 90, 129 lm/W — DALI-2
• 074-8123037B — MITA circle 200 reflector trim — jet black, reflector dark chrome, 3000 K, CRI ≥ 90, 92 lm/W — DALI-2
• 074-8123137B — MITA circle 200 reflector trim — jet black, reflector dark chrome, 4000 K, CRI ≥ 90, 92 lm/W — DALI-2

Technical specifications

• Model / Denomination: MITA circle 200
• Housing: ring-shaped die-cast aluminium
• Mounting: recessed with trim; ceiling thickness 2–25 mm
• Finish: powder coated surface
• Covers: opal diffuser or reflector variants (chrome, dark chrome, black)
• LED options: 3000 K, 4000 K, tunable white 2700–6500 K
• Colour rendering: CRI ≥ 80 and CRI ≥ 90 options; 3 SDCM available
• Luminous efficacy: up to 139 lm/W (variant dependent)
• Lumen maintenance: L90 / 100000 h or L90 / 50000 h
• UGR (glare): UGR ≤ 19 in suitable configurations
• Dimming protocol: DALI-2
• Ingress protection: IP20
• Applications: office, circulation, general indoor lighting; compatible with plasterboard and grid ceilings
