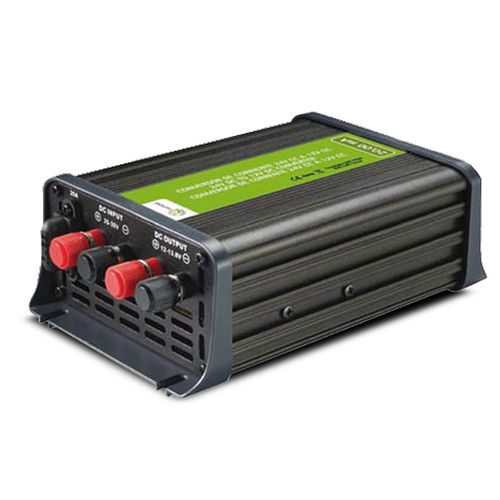

DC-DC converter. It converts a 24VDC input into a 12VDC-20A output
DCDC20 converter produces an output of 12 VDC from a 24 VDC battery bank
It is really useful for installations of 24V battery banks, as your 12 VDC equipment and devices can be powered.
In order to avoid the most common problems, the converter is equipped with multiple protections, such as, overloading protection, overheating protection, etc.
Furthermore, it also is provided with diode reverse polarity protection, reverse polarity protection for the output and output short circuit protection.
Features and Benefits
Input Voltage 20 - 30 VDC
Output Voltage 12 - 13,8 VDC
Output Power (continuous) 20 A
Output Power (maximum) 30 A
Standby Current 70 mA
Input fuse 20 A
Efficiency 85 - 90 %
Overheating Protection 65ºC ± 5ºC
Diode Reverse Polarity Protection
Reverse Polarity Protection for the output
Output Short Circuit Protection
Overloading Protection
Dimensions 175 x 114 x 65 mm
Weight 730g
