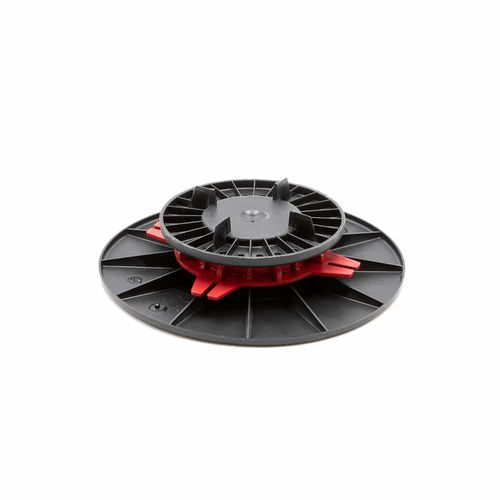

The slab pedestal is a support allowing the installation of a raised tiled terrace, ceramic or grating. The slab terrace pedestal is adjustable in height from 40 to 60 mm thanks to the red colored nut. The pedestal is composed of a head equipped with 4 lugs designed to hold the slabs in their place. The installation of a slab terrace on pedestals allows a considerable saving of time and is carried out without joints.
Resistance:
The paving pedestal can withstand loads of up to 1 ton. Robust, it supports without deterioration temperature variations from -40°C to + 60°C, UV rays, frost as well as acidic and chemical products. The slab pedestal for terrace is compatible with a installation near a swimming pool.
Manufacturing:
Made in France, the RINNO slab pedestal is environmentally friendly. It is made from polypropylene, a recycled and recyclable material.
Conformity:
RINNO pedestals comply with current standards: DTU 43.1 and 51.4.
Use of the 40/60 mm paving pedestal:
The installation method on terrace pedestals is quick and easy to perform. The rules to follow for a good performance of the site on slab pedestals:
ensure that the reception surface of the future terrace is stable and loose
place 1 pedestal per angle for each tile (1 tile = 4 pedestals)
in case of very large slabs, put a 5th block in the center by breaking the fins
use a coating of at least 2 cm thickness.
