CorruSec SR3 fencing is a patent pending innovative high security perimeter fencing solution that has been designed and developed by Zaun. Independently tested by BRE and entered into the RED BOOK, CorruSec SR3 Fencing successfully passed and achieved LPS1175 SR3 rating.
The unique construction has been specifically designed to provide a minimum delay time of at least 5 minutes. The specially configured mesh system has been independently tested to defeat a range of attack methods including both hand tools and power tools. Ideal for protecting assets on sites including water utility sites, oil and gas compounds, data centres and other sites of critical, national importance. The robust fencing solution also provides good visibility for use with CCTV camera systems.

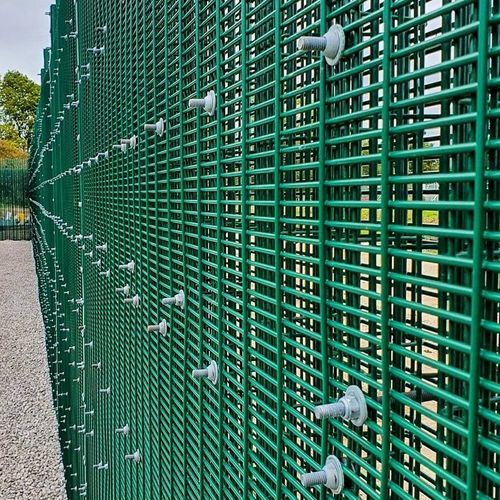

CorruSec SR3 fencing is configured using anti climb HiSec 3/5/10, with flat front and rear panels and a corrugated mesh panel in the centre. Each individual panel features a 76.2mm x 12.7mm mesh configuration with 3mm horizontal and vertical wires. The corrugated section is pressed to approximately 100mm in depth. All three layers are bolted together using bolts fixed into place in a grid pattern throughout the combined fence panel.
At a minimum height of 2.4 metres high, CorruSec SR3 fencing features a maximum corrugated infill of 2.4 metres high. Each panel is supplied with widths of 2.5 metres with 2540mm post centres with a double row of fixings. Posts are designed using 80x80mm SHS and available in either bolt down or in ground post options. Full panel assembly is fixed to the posts using 80mm full height clamp bars with fixing centres of 9 inches (228.6mm).
