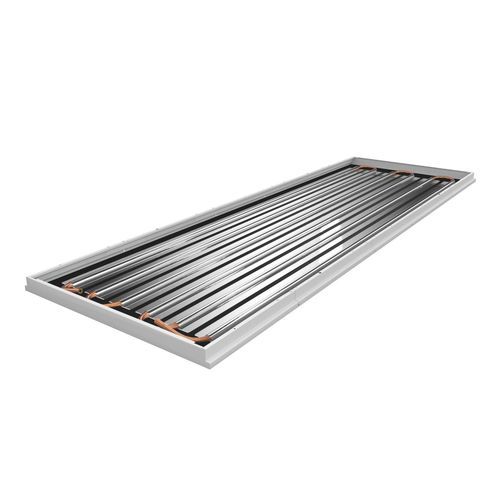

Hot water radiant panel Zehnder Alumline

ceiling-mountedfor officecustomizable color

Product description
The Zehnder Alumline adapts to modern requirements, responding quickly to temperature changes while delivering an energy-efficient solution and preserving architectural freedom. It combines a galvanised steel panel body, an aluminium heat-conducting profile and a D-shaped copper pipe for enhanced thermal transfer, enabling both heating and cooling applications. Modules are available for lay-in ceilings and for suspended ceiling sails. A high-quality powder coating finish and a discreet design support long service life. A wide range of ceiling types, colours, dimensions and customised solutions are available on request.

Applications

• Integration into all types of lay-in/grid ceilings, especially traditional grid ceilings (typical installations: schools, hospitals, nurseries, care homes and offices).
• Freely suspended ceiling sails: can be installed suspended from the structure, in series or adjacent configurations.

Key benefits

• Energy saving due to short system response time to temperature variations.
• Operating temperatures compatible with low-temperature systems.
• Suitable for installation in lay-in ceilings or as freely suspended ceiling sails.
• Easy installation: lightweight, delivered ready to install, simple hydraulic connections.
• Optional integrated acoustic insulation.
• High-quality powder-coated surface for extended service life.

Construction and materials

• Panel construction: galvanised steel panel body.
• Heat conduction: aluminium heat-conducting profile.
• Pipework: D-shaped copper pipe for improved thermal transfer.
• Surface finish: high-quality powder coating.
• Options: integrated acoustic insulation; customised colours, dimensions and special solutions on request.

Technical specifications

• Function: radiant ceiling panels for heating and cooling.
• Materials: galvanised steel panel, aluminium heat-conducting profile, D-shaped copper pipe.
• Suitability: designed for low-temperature systems and rapid response to temperature changes.
• Installation types: lay-in grid ceiling integration or freely suspended ceiling sails (series or adjacent mounting).
• Installation features: lightweight, delivered ready to install, simple hydraulic connection.
• Acoustic option: integrated sound insulation available.
• Finish: high-quality powder coating for long service life.
• Customization: wide range of ceiling types, colours and dimensions; special solutions on request.
