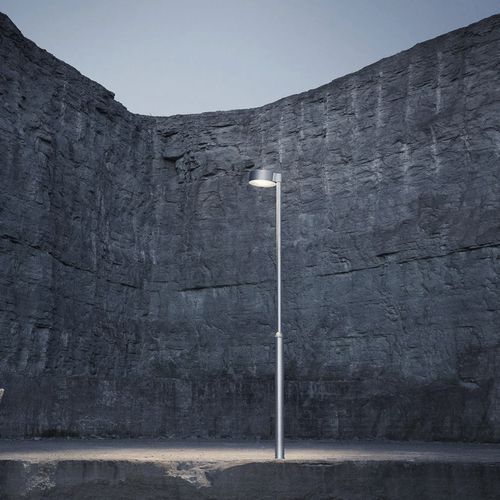

Pole-mounted light fixture PUCKLEDroundIP44
Add to favorites
Compare this product
Characteristics
- Type
- pole-mounted
- Light source
- LED
- Shape
- round
- Protection class
- IP44
- Interior/exterior use
- outdoor
- Application
- commercial
- Material
- tempered glass facing, lacquered steel
- Color
- gray
- Style
- contemporary
- Dimmable
- dimmable
- Number of lights
- multiple
- Other characteristics
- DALI, IK07
- Height
135 mm
(5 in)- Length
360 mm
(14 in)- Width
360 mm
(14 in)- Power
28 W
- Luminous flux
Max.: 2,298 lm
Min.: 2,140 lm
- Color temperature
3,000 K
- Color rendering index (CRI)
Max.: 100 unit
Min.: 80 unit
Description
Finish
Painted steel. Diffuser in tempered glass.
LED information
System power 28W. Luminaire luminous flux 2298LM (symmetrical) or 2140LM (asymmetrical). Correlated colour temperature (CCT) 3000K. SDCM 3. CRI >80. Lifetime: L90 B10 100,000h.
Installation
Mounting on pole top with D60 mm.
Connection
Terminal block 4x10 mm2.
Classification
IK07, IP44.
Design
R. Aosta.
Standard colours
Standard finish: painted grey. Other colours available on request.
Product specification
Technical characteristics
Painted steel. Diffuser in tempered glass.
LED information
System power 28W. Luminaire luminous flux 2298LM (symmetrical) or 2140LM (asymmetrical). Correlated colour temperature (CCT) 3000K. SDCM 3. CRI >80. Lifetime: L90 B10 100,000h.
Installation
Mounting on pole top with D60 mm.
Connection
Terminal block 4x10 mm2.
Classification
IK07, IP44.
Design
R. Aosta.
Standard colours
Standard finish: painted grey. Other colours available on request.
Product specification
- LED 2298LM/28W | Symmetrical | ART. 3279-1-10
- LED 2298LM/28W | Symmetrical | ART. 3279-1-10HFF
- LED 2140LM/28W | Asymmetrical | ART. 3380-1-10
- LED 2140LM/28W | Asymmetrical | ART. 3380-1-10HFF
- HFF = DALI dimmable
- Accessories: Grey painted pole 3-4000 mm | ART. 93230-1-10
Technical characteristics
- Finish: Painted steel
- Diffuser: Tempered glass
- System power: 28W
- Luminaire luminous flux: 2298LM (symmetrical) or 2140LM (asymmetrical)
- Correlated colour temperature (CCT): 3000K
- SDCM: 3
- CRI: >80
- Lifetime: L90 B10 100,000h
- Installation: On pole top D60 mm
- Connection: Terminal block 4x10 mm2
- Classification: IK07, IP44
- Design: R. Aosta
- Available models (examples): Symmetrical (ART. 3279-1-10 / 3279-1-10HFF), Asymmetrical (ART. 3380-1-10 / 3380-1-10HFF)
- Accessories: Grey painted pole 3-4000 mm (ART. 93230-1-10)
