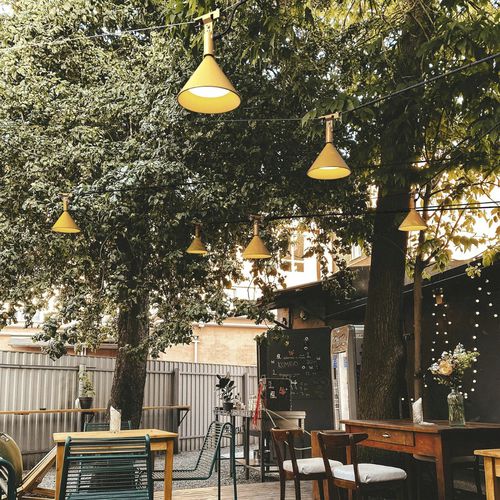

LED cable lighting LUMO CATENARY

stainless steelacrylicaluminum

Finish
Powder coated die-cast aluminum. Wire-fitting in stainless steel. Diffuser in matt acrylic.

LED info
System power 22W. Luminaire luminous flux 1690 lm. CCT 3000K (2700K, 4000K on request). SDCM 3. CRI >90. L70/50,000 h.

Installation
Designed for catenary suspension with 3–6 mm cable (cable excluded). Suitable for architectural suspended installations and canopies.

Connection
Delivered with 2 m black cable with a 3‑pin (On/Off) or 5‑pin (DALI) screw connector. Standard terminal x2.5 mm2. Does not permit through-wiring in delivered configuration; screw connector for through-wiring available on request.

Classification
IK08 (IK10 on request). IP65.

Design
Thomas Bernstrand 2023.

Standard colours
Black. Other colours on request.

Product specification
POWER/LM | KELVIN | CRI | MODEL | COLOUR | ART.
22W/1690LM | 3000 | >90 | On/Off | Black | 12138106-30
22W/1690LM | 3000 | >90 | DALI | Black | 12138106D30
ACCESSORIES | | | | |
3-pin screw connector for through-wiring x1.5mm2/on-off | | | | | 912138106
5-pin screw connector for through-wiring x1.5mm2/DALI | | | | | 912138306

Technical specifications

• System power: 22W
• Luminaire luminous flux: 1690 lm
• CCT: 3000K (2700K, 4000K on request)
• SDCM: 3
• CRI: >90
• L70: 50,000 hours
• Finish: Powder coated die-cast aluminum; wire-fitting in stainless steel; diffuser in matt acrylic
• Installation: Catenary fitting 3–6 mm; cable excluded
• Connection: Supplied with 2 m black cable with 3‑pin (On/Off) or 5‑pin (DALI) screw connector; x2.5 mm2 standard terminal; through-wiring not permitted in delivered version (screw connector for through-wiring available on request)
• Classification: IK08 (IK10 on request); IP65
• Design: Thomas Bernstrand 2023
• Standard colour: Black (other colours on request)
• Article numbers: 12138106-30 (On/Off), 12138106D30 (DALI)
• Accessories article numbers: 912138106 (3-pin), 912138306 (5-pin)
