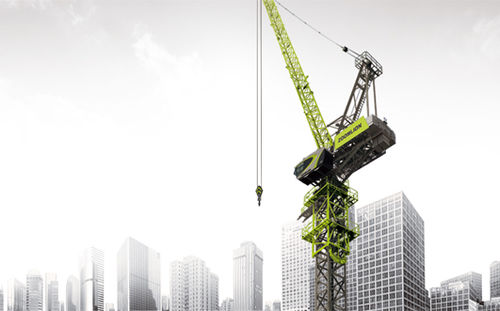

Tower crane L250-16

luffing jibfixedlifting

1. Performance parameters of L250-16: performance parameters and technical indexes reach both domestic and international advanced level. • Max. jib length: 60m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 30 meters. • Max. lifting capacity 16t; • Hoisting capacity at jib tip: 3t; • Max. lifting moment 250 t.m; • Hoisting mechanism: H75FL40-930D; power:75 kW; rope capacity: 930m; • Slewing mechanism: HVV145B1.130A/ HVV145B2.130A , power: 2×7.5kW • Trolleying mechanism: L45FL50; power: 45 kW 2. Electrical control system With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation. 3. Technical features • The crane boasts of multiple operation modes and wide application; • The complete machine adopts internationally well-received beautiful shape; • The crane features high working speed and excellent speed regulation performance. Stepless speed regulation by frequency control, the world's most advanced solution, is adopted for the trolleying mechanism and slewing mechanism, thus ensuring more stable and reliable operation ; • The cab is independently installed externally with good vision and large inner space, thus offering a good working environment for operators;
