Unidade de controle central 9443

unidade de controle central
unidade de controle central
Guardar nos favoritos
Comparar


Características

Especificações
central

Descrição

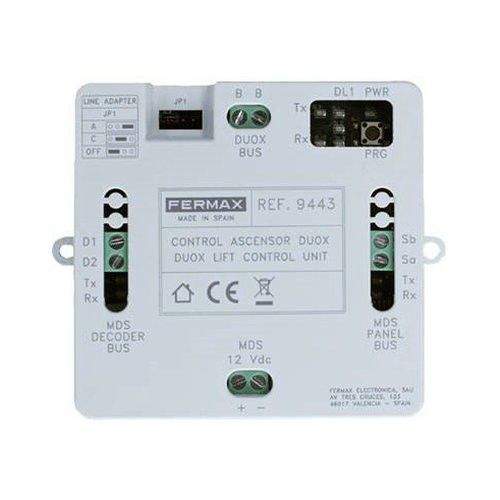

The DUOX PLUS Lift Control Unit is a module used to provide lift control service to the DUOX PLUS installation, i.e. visitors can only access the floor corresponding to the home that has opened the door. It is an interface between DUOX PLUS and MDS, the MDS Central Unit being in charge of the lift control functionality, together with the relay decoders. It is connected to the DUOX PLUS bus, the MDS Panel bus and the MDS Decoder bus. - The lift control functionality must be programmed in the Central Unit MDS, with the WINCOM+ software. Available at www.fermax.com in ONLINE SUPPORT/ SOFTWARE together with the manuals. - One lift control module ref. 9443 and one MDS control unit ref. 2405 are required for each DUOX PLUS block. - The DUOX PLUS general entrance panels are considered MDS panels with address 10, regardless of whether there is more than one. The rest of the MDS addresses [11...31] are reserved for MDS equipment: panels, access control readers or door controllers. System: DUOX PLUS (2 wires digital) Peso: 0,1516 kg Medidas do produto embalado: 6,4x10,8x9,6 cm

Catálogos

Não estão disponíveis catálogos para este produto.

Ver todos os catálogos da FERMAX ELECTRÓNICA
* Os preços não incluem impostos, transporte, taxas alfandegárias, nem custos adicionais associados às opções de instalação e de ativação do serviço. Os preços são meramente indicativos e podem variar em função dos países, do custo das matérias-primas e das taxas de câmbio.
