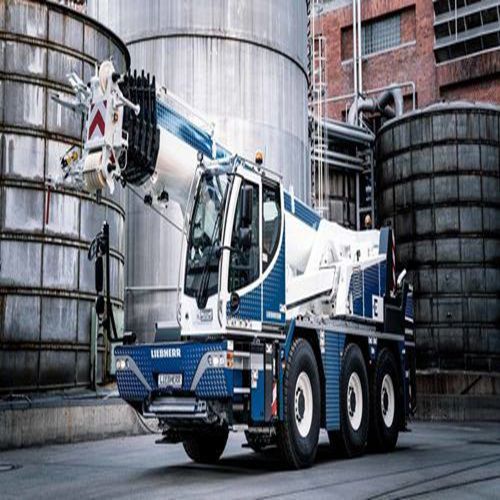

Guindaste compacto LTC 1050-3.1E

telescópicocom lança treliçadacom lança

Overview The LTC 1050-3.1E is a compact 50 t mobile crane offering an optional electric motor alongside the conventional diesel‑hydraulic power unit. Crane functions can be powered electrically from site supply or external battery packs. With sufficient site power, electrical operation achieves performance comparable to engine mode; performance is reduced if available supply is lower.

Key features

• Max. load capacity: 50 t
• Max. hoist height: 48 m
• Max. radius: 39 m
• Telescopic boom: 8.10 m – 36.00 m
• Lattice jib: 1.50 m – 13.00 m
• Number of axles: 3

What’s inside

• Electric operation: zero CO2 emissions during crane functions when powered electrically.
• Full power: comparable lifting performance in electric and diesel modes when adequate supply is available.
• Noise reduction: significantly lower noise emissions in electric operation.
• Site supply: full performance with 125 A; reduced performance with 32 A / 63 A.
• Stored power: compatible with conventional external battery packs.
• Quick switching: fast change between diesel‑hydraulic and electro‑hydraulic operation.

Technology highlights

• ECOmode: minimises fuel consumption and noise by adapting engine speed to working requirements.
• ECOdrive: lowers engine speed for comfort and fuel efficiency; improves gearshift dynamics and offroad traction.
• RemoteDrive: remote control for operation from outside the cab to improve visibility and safety.
• VarioBase®: variable outrigger support to extend each outrigger to different lengths and increase lifting capacities in constrained spaces.
• Lift cabin: telescopable operator cabin with infinite adjustment for better view and safety.
• HVO ready: option to reduce CO2 emissions when using HVO fuel.

Technical data (table)
Max. load capacity: 50 t
At radius: 3.00 m
Telescopic boom from: 8.10 m
Telescopic boom up to: 36.00 m
Lattice jib from: 1.50 m
Lattice jib up to: 13.00 m
Drive engine / make: Cummins
Drive engine: 6‑cylinder diesel
Drive engine / power: 243 kW
Crane engine / power: 72 kW
Number of axles: 3
Drive / Steering standard: 6 x 4 x 6
Drive / Steering option: 6 x 6 x 6
Driving speed: 85.00 km/h
Total ballast: 6.50 t

Applications & operation notes

• Suitable for zero‑emission sites when crane functions are supplied electrically.
• Electrical performance depends on available site power; 125 A required for full capability.
• External battery packs can supplement or replace site supply for limited periods.

caractéristiques / spécifications techniques

• Model: LTC 1050-3.1E
• Type: Compact mobile crane
• Max. load capacity: 50 t
• Telescopic boom range: 8.10 m – 36.00 m
• Lattice jib range: 1.50 m – 13.00 m
• Max. hoist height: 48 m
• Max. radius: 39 m
• Drive engine / make: Cummins, 6‑cylinder diesel, 243 kW
• Crane engine power: 72 kW
• Axles: 3 (Drive/Steering std 6 x 4 x 6; opt. 6 x 6 x 6)
• Driving speed: 85 km/h
• Total ballast: 6.50 t
• Electric power option: electro‑hydraulic operation, full performance at 125 A, reduced at 32 A / 63 A; supports external battery packs.
