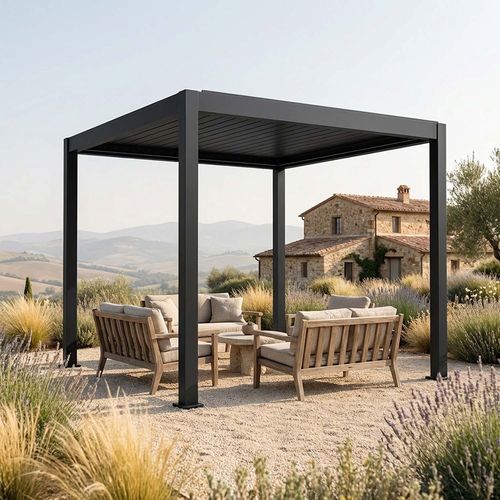

Pérgola com ancoragem dos pilares LYRA T6

em alumínio pintadoem alumíniocom lâminas orientáveis

Description
Lyra T6 is a bioclimatic pergola with adjustable louvres (0°–100°) locked securely in any position. Its T6 ArmorAlloy™ structure (6063-T6 aerospace-grade aluminium) is INTERTEK EN 13659 certified and tested to resist high wind and snow loads. Available in five standard sizes (from 9 to 24 m²) and two powder-coated colours.
Principales caractéristiques

• Adjustable motorised louvres: 0° – 100° for light, shade and ventilation control
• T6 ArmorAlloy™ structure: aluminium 6063-T6 (aerospace-grade)
• INTERTEK EN 13659 certified: tested at 143 km/h wind and 160 kg/m² snow load (no structural deformation)
• Solar rain sensor included: full-metal corrosion-resistant housing, ~6 months autonomy, ~80 m wireless range
• SealDrive™ IP67 submersible motor (DC24V/30W): certified failure rate < 0.025%
• DuoGlow™ perimeter bi-colour LED lighting included: 3000K (warm) + 6000K (functional), CRI 90
• DualChannel™ pole profile: separate channels for electrical and water drainage (no visible external ducts)
• GripBolt™ M8 bolt-lock system: anti-loosening hardware, minimal maintenance
• Includes 868 MHz remote control and Tuya Smart app compatibility
• Designed for direct-from-manufacturer supply: full kit included (see below)

Ce qui est inclus

• Aluminium structure (poles, beams, louvres) pre-finished in selected powder-coat colour
• Pre-installed IP67 motors and pre-wired plug & play connectors (transformer YZ21008-01A housed in the pole)
• Integrated perimeter bi-colour LED (IP67) and LED driver/transformer
• Solar rain sensor (factory paired)
• Anchoring kit: steel base plates 8 mm (4 plates for smaller formats, 6 plates for larger formats)
• Full installation kit: M8 GripBolt fasteners, end caps, EPDM seals, illustrated instructions and video support
• 868 MHz remote control and Tuya app access

Caractéristiques / spécifications techniques

• Available sizes: 3×3 m, 3×4 m, 3×6 m, 4×4 m, 4×6 m (9–24 m²)
• Structure material: Aluminium 6063-T6 (T6 ArmorAlloy™)
• Standard colours: Matt Grey (RAL7016), Matt White (RAL9016)
• Louvre rotation range: 0° – 100°
• Wind resistance: 133 km/h operational; 143 km/h tested by INTERTEK
• Snow load: 110 kg/m² operational; 160 kg/m² tested by INTERTEK
• Power supply: 100–240 VAC 50/60 Hz
• Motor: DC24V / 30W, IP67 submersible, stroke 165 mm, force 800 N
• Certified motor failure rate: <0.025% (based on testing across installations)
• Transformer: YZ21008-01A, IP65, housed inside the pole; outputs for motor and LEDs
• Perimeter LED: IP67, 2 × 2.7 W/m, selectable 3000K / 6000K, CRI 90
• Remote: 868.35 MHz (range >200 m open field; up to ~30 m with obstacles)
• App: Tuya Smart (Wi‑Fi + Bluetooth). Smart home compatibility: Google Home, Alexa, HomeKit (with optional bridge)
• Pole profile: 120×120×2 mm double-channel (electrical + drainage)
• Beam profile: 160×95×1.7 mm with integrated gutter
• Louvre profile: 160×33×1.4 mm (max length up to 3 m per louvre)
• Pole height: 2,515 mm
• Base plates: 8 mm steel (4 plates for 3×3/3×4/4×4; 6 plates for 3×6 and 4×6)
• Weight (approx.): 150–250 kg depending on size
• Warranty: 10 years on structure; 3 years on motors
• Included standard accessories: EPDM seals, SUS304 stainless end caps, glass-fibre reinforced nylon louvre supports, pre-connected cables with plug & play connectors
