SPACE REFLEX® foil SR 41 DB F5 is composed by two sheets of aluminium on both sides, with two layers of stanched air bubbles, hermetically closed and one layer of foam on the interior. This product is a Thermo-Acoustic Insulation.
|
|

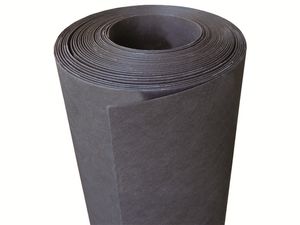

ISO Blanket and ISO Blanket Pro are limp-mass solutions designed for the treatment of airborne noise. They differ in their STC (Sound Transmission Coefficient) in that ISO Blanket Pro has a bigger coefficient/performance due to its agglomerated fabrics.
The blankets perform as sound barriers when applied to ceilings, walls and floors. Their flexibility, thin design and high resistance make them easy-to-use materials. They are most effective when used in construction projects that involve several layers of different material.
Product Technical Information
ISO Blanket Pro STC: 36,8 Rw (dB)
Dimensions: 1x5m (8mm thickness)
1900-2000 kg/m3
Applications

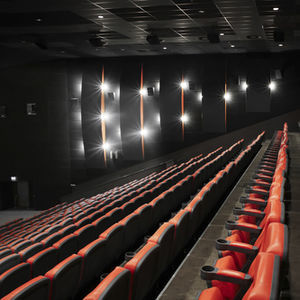

Worship Houses, Home Theatres, Listening Rooms, Recording and Broadcast Studios, Post Production Studios, Lecture Halls, Distance Learning Rooms, etc.
|
|
|
dBred VIBRO WS is specially designed homogeneous elastomeric support systems for gypsumboard partitions. The semi-cylindrical modulation at their base, increases the deflection and improves the vibration protection. The inclined flaps of dBred VIBRO WS cover the fixing bolts on the base and prevent contact with gypsumboard.
|
|
|
|
|
|
Insulation
Kalzip insulation products conserve energy through their use by reducing the requirement to heat or cool buildings, limiting CO2 emissions. They are also HCFC and HFC free and have a global warming potential (GWP) rating of less than five
The most common insulation used is a quilt type, non-hygroscopic material that will not absorb any moisture, but simply retain it on the surface of its fibres thus encouraging evaporation to take place.

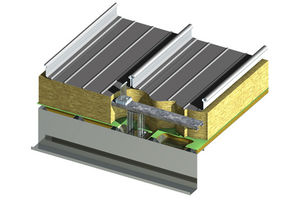

The use of a compressed insulation, completely filling the roof void above the vapour control layer, together with the breathability of the Kalzip sheet seams, negates the need for a breather membrane material within the Kalzip roof system.
Kalzip's range of insulation products includes glass and rockfibre quilt, semi-rigid slab and high density slab. At the heart of the range are Kalzip Insulation Plus 35 and Plus 37, which are high performance mineral fibre quilts offering extremely efficient thermal performance.
To complete the range further, glass and rockfibre insulants are available offering a wide variety of thermal performance values together with the flexibility of use where additional acoustic performance is required.
|
|
|
Panel rolled out of glass wool covered on a face of a veil polyester. The good cohesion of glass wool ISOVER, associated with the veil, reinforces the mechanical resistance of BY COMFORT. Once positioned between the metal frameworks, it fills space perfectly, in accordance with the DTU 25-41.
|
|
Semi-rigid panel to unroll out of glass wool covered with a veil comfort with transverse marking all the 100 Misters is integrated into the systems Intégra Réno and Vario.
The products of range ISOCONFORT are particularly well adapted for an easy installation and rapid between rafters. They allow the maintenance of a board of air ventilated between insulation and the cover for the perenniality of this one. Thanks to marking, cutting is easy. Elasticity and rigidity guarantee a perfect adjustment with the frame.
|
|
|
Semi-rigid panel rolled out of naked acoustic performance, glass wool high, adapted to the system of partition-wall great height. Be integrated into the system of Technostar partition-walls.
|
|
|
URSA Acoustic Roll is a lightweight, non-combustible, unfaced glass mineral wool product used for sound insulation of lightweight metal stud partitions.
|
|
|
ABRIFLOOR® is an extruded polyethylene foam, ideally suited for use as an underlay for laminated parquet thanks to its heat and noise insulation properties. This underlay in 20 and 25 kg/m³ density and thicknesses of 2 and 3 mm is supplied in convenient rolls of 1 m and 1,20 m and lengths of 10 m, 15 m, 20 m, 25 m or longer strips for professional use.
|
|
|
The complex is made of two 3 mm layers of extruded polyethylene in 35 kg density. Grey to the bottom and white to the top. The top layer is laminated to a layer of HDPE which carries the trade mark ACOUSTICREFLEX®. Using the 100 mm overlap on the top sheet it is overlaid (shingled) in use, eliminating cold spots. Thus it is in total minimum 6 mm and max. 9 mm on the overlap. The material is inert and moisture free, has a high resistance to chemicals and acts as a vapour barrier.
|
|
|
This is an extruded polyethylene foam structure which is composed of 4 laminated layers of 2 mm (alternately green/white) in a 25 kg/m3 density and printed with the name "acoustic", on a top HDPE film. Using the 100 mm overlap on the top sheet it is overlaid (shingled) in use, eliminating cold spots. Thus the thickness will never be less than 4 x 2 mm and never more than 6 x 2 mm. The material is inert and moisture free, has a high resistance to chemicals and acts as a vapour barrier.
|
|
Panel consisting of long mineralised fir wood-wool bound with white Portland cement. A selected, permanent product with a pleasant appearance.
- False ceilings and natural wall coverings, sound absorbing, transpiring, fire resistant, unaffected by humidity
- Transpiring coverings, fire resistant, sound absorbing with facing finish
|
|
Panel made of thin mineralised fir wood-wool bound with white Portland cement. A selected, permanent product with a pleasant appearance.
- False ceilings and natural wall coverings, sound absorbing, transpiring, fire resistant, unaffected by humidity
- Transpiring coverings, fire resistant, sound absorbing with facing finish
|
|
Floor insulation system for laying of boarded floors without impact sound bridges
Heat and impact sound insulation for various types of floors
|
|
|
Partition walls by tela-design serve as screens and sound insulation means. They are easy to integrate subsequently and provide high sound insulation values. Each item will be manufactured according to the project's requirements.
|
|
DESCRIPTION
- Boards of resin bonded glass fibers in a range of densities.
- Unfaced boards for use where an exterior finish will be applied.
- Foil Scrim Kraft (FSK) faced boards provide a clean metallic surface finish.
- All Service Jacket (ASJ) faced boards provide a white surface finish.
USES
- Where rigidity properties of a board product are required.
- Adding sound absorption to interior spaces.
- For exposed or non-exposed applications where a Fire Hazard Classification of 25/50 is required.
|
|
NoiseReducer products are designed for use in commercial and residential wall and ceiling assemblies to effectively reduce transmission of airborne sound and provide thermal insulation.

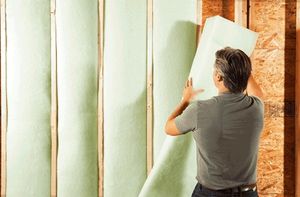

NoiseReducer Sound Control Batts are designed for wood stud interior walls and floors to help you add “the sounds of silence” to any home, as well as helping you differentiate yourself from your competition. Quite simply, NoiseReducer Sound Control Batts provide a sound-absorber that fills the void between interior wood studs. This absorber effectively breaks the path of sound. In other words, NoiseReducer batts keep the peace in new homes and work environment... limiting sound levels without limiting normal activity.
|
|
|

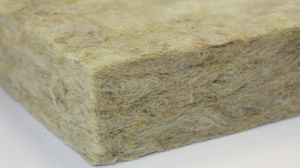

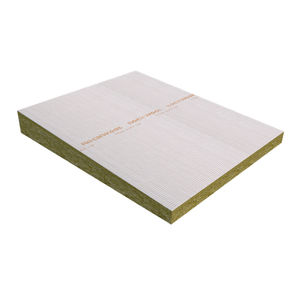

Rigid, fire safe stone wool board with high acoustic insulation perfomance. It is faced with a natural coloured glass tissue.
|
|
Rigid, fire safe stone wool board with high acoustic insulation perfomance.
Application

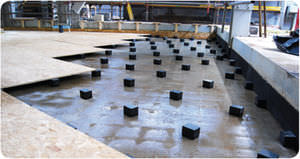

Impact sound insulation in intermediate floors. The product is used as a floating resilient layer underneath a floating concrete slab.
|
|
|
Semi-rigid, fire safe stone wool slab with high sound absorption insulation performance. It is faced with a natural coloured glass tissue.
|
|
Celenit ABE, thermal and acoustic, ecobiocompatibile insulation panel, in wool of extra-thin wood of red fir, mineralized and tied with Portland concrete white man of not inferior compressive strength 42,5 to N/mm2, in compliance with the norm ONES EN 13168, produced from certifyd company ONES EN ISO 9001:2000.
Selected and stabilized product, from the aspect pregevole.
The panel is classified of Euroclasse B-s1, d0 of reaction to the fire.
Dimensions of the panel: cm 200x60, 120x60, 60x60
Spessori of the panel: milimeter 25, 35
It employs: natural, fonoassorbenti, traspiranti, resistant controsoffittature and coatings to the fire, insensitive to the humidity; traspiranti, resistant roofings to the fire, fonoassorbenti with finish at sight; interposed for Celenit Mixlam.
|
|
|
Semi-rigid glass wool panel, covered on a face d%u2019un kraft paper vapor barrier.
|
|
Ideal product for false ceilings and insulated wall claddings.
The panel consist of a stiff sheet metal support, which produces an excellent finish on the exposed part, and a flexible "nonwoven glass fibre" support (see MONOLAMIERA). On the exposed part, this panel is made with the same profiles and colours as the ISOPAR panel.
Maximum length of ISOPAR MONOLAMIERA single sheet panels is 5 metres.
|
|
VENTILATED, THERMALLY AND ACOUSTICALLY INSULATED PANEL
The panel is produced from biosoluble rock wool with EC marking and complies with EN 13162:2001 standards. It is made from mineral wool obtained from natural rock melting and spinning. It features high compression resistance, excellent thermal insulation and acoustic absorption, as well as a guaranteed resistance to ageing and chemical agents. The panel%u2019s rock wool is biosoluble, according to Note Q of European Directive 97/69/EC, implemented in Italy in 1998, and does not therefore constitute a health hazard.
|
|
|
COMPACT consists of a special waving fibrous structure, a on one side consolidated, hard surface and a singular coating for best plaster bond. A raster marking facilitates a cutting.
|
|
|
The Steinwoll Dämmplatte TOPA ACOUSTICS is on one side with a strainable, bright mat coated and had a special fiber adjustment for the noise protection. The edges of TOPA are chamfered.
|
|
|
|
|
|
The REPI SOUND panels are metallic panels with insulation made of mineral wool fit for the realisation of Roofs Coverings, Walls, Internal Division of industrial and civil building
The REPI SOUND panels are constituted of two trapezoidal or microgrooved metallic supports with interposed insulation of oriented fibre mineral wool which is arranged in fillets perpendicularly to the two metallic supports.
METAL SUPPORT:
The REPI SOUND panels are made of two trapezoidal, microgrooved or flat metallic supports obtained by cold-process profiling the sheet coils.
The materials which are used are:
- Galvanized Steel
- Prepainted Galvanized Steel
- Stainless Steel
- Natural Aluminium
- Prepainted Aluminium
- Copper
INSULATION:
The insulation is made of oriented fibre mineral wool which is arranged in fillets perpendicularly to the two metallic supports. The thickness of the insulation may vary from a minimum of 40 mm to a maximum of 300 mm with a density from 75 to 150 kg/cu.m.
PERFORMANCE AND TECHNICAL ASPECTS
The REPI SOUND panels belong to the category of fire-proof products and soundproofing and soundabsorbent products. The REPI SOUND panel obtains the soundabsorbent power thanks to its typical Perforated Sheet exposed to noise. Acoustic tests have attributed to the REPI SOUND panels values of RW equal to 32dB, 33dB, 35dB, which face the problems concerning noise reduction. In order to increase the soundproofing power, it is possible to produce a monolithic panel supplied with triple sheet, that is to say with a thin metallic sheet between two insulating layers.
|
|
|
Mineral Fibre insulation has a special pre-coating, allowing for faster application and also has a proven sound reduction of up to 3 dB.
|
|
|
|
