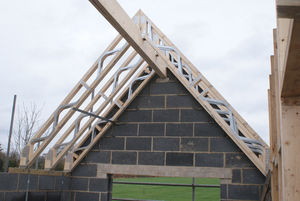

Ecojoist® beams consist of parallel stress graded timber flanges joined together with engineered V shaped galvanised steel webs. The webs are fixed to the flanges via nail-plate zones top and bottom.
Benefits of using Ecojoist®:
- Robust Standard Detail
- Depth compatible with solid joist sizes
- Made to measure, reducing on site wastage
- Minimal shrinkage or swelling
- Reduction or elimination of surface run pipe work
- Lightweight construction
|
|
For high-quality floor, wall and ceiling structures, value should be placed on the use of qualitatively immaculate material for the substructures.
In practice, however, substructures are frequently constructed from sawn slats, which tend to twist and distort. The result for the craftsman is damage which is expensive to remedy and aggravation from complaints.
Finger-jointed battens from Mosser are manufactured using carefully dried timber. Imperfections in the raw material, which could affect the functionality of the product, are eliminated and the pieces are put together with finger-joints. The resulting battens, manufactured and planed to exact measurements using this complex method, offer optimal conditions for every type of substructure.
Twisting or shrinking of the substructure and all associated problems are finally over and done with.
|
|
1) Flange: Solid sawn pine lumber flange or LVL flange
2) Web: Pine plywood
3) Length: 2.5, 2.9, 3.3, 3.36, 3.9, 4.5, 1.9, 5.9
4) Specification: H200X80X27X40mm
4) Weight per running meter: 5.0kg
5) Bending: 3/720
6) Permissble bending moment: M=95kn/m
7) live load: 1613.3kn/m3
8) Permissible shear force: Q=595KN
9) Characteristic: Low cost, high straight, weight light. Generally be used, adapt to E2 environmental standard. High standardization of product parts, good to be reused.
|
|
H20 Beam
i beam(i-josit)
length cm:180/245/290/330/360/390/490/590
Live load(bending stiffness):max 500kn/m2
material: made of high-grade solid sawn pine lumber and pine plywood,LVL pine plywood
glude:MUF warterproof glue
color:yellow
Overall beam depth H: within 1 mm
Flange width and depth: within 1 mm
Web thickness: within 0,5 mm
Maximum moisture content by the time of assembly is 18 % for the timber flanges and 10 % for the web boards.
The system product parts standardizes degree is high, reused well, meet the environmental protection request.
|
|
|
The Kaufmann HT20plus formwork timber beam is a solid I-beam used for concrete formwork construction. The height of the beam is 20 cm and it is available in different standard lengths. The patented, stable synthetic cap prevents premature splintering at the high sensitive chord ends. The HT20plus is successfully used for many years worldwide - in over 50 countries.
|
|
A) Flange:solid sawn pine lumber flange
B) Pine plywood web.
C) WBP phenolic resin (professional glue for H Beam)
D) Painting on the surface of flange and web: with yellow, waterproof, fireproof, rot-proof and frozen-proof
painting, and the painting is environment friendly, meeting the environmental protection request.
Weight per running meter: 5.2-6.5kg
Bending moment -- max. 5kN/m
Shear force: min 11.0kN
Bending: max 1/500
Live load (Bending stiffness) Max 500kN/m2
H.S. Code 2007: 44186000.90
|
|
|

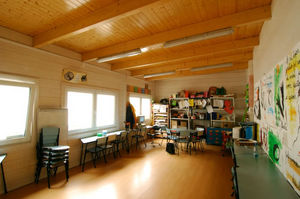

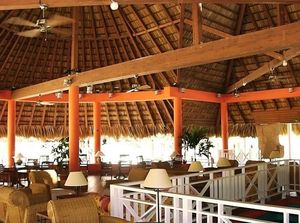

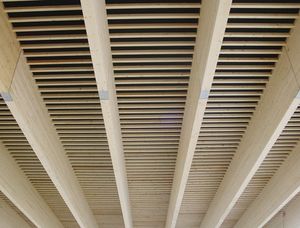

Glulam is a high-quality material which is useful in a wide range of applications and possesses outstanding properties. It can be incorporated ideally in interior design and is particularly attractive.
|
|
|

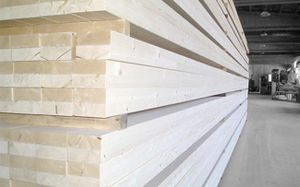

Softwood beams are produced by gluing two solid timber pieces together with the grain running parallel and the end sections the same size. The result of this process is larger or more structurally stable sections.
|
|

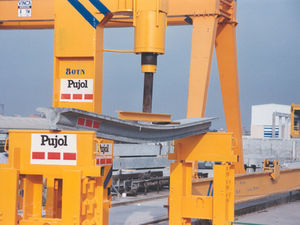

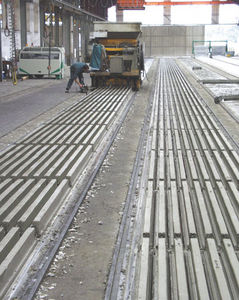

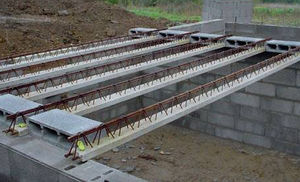

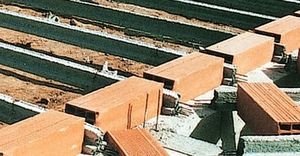

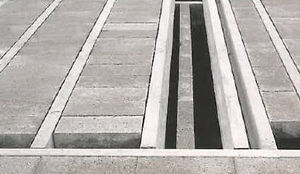

RECTOR, precursor of the solution of floor with beams posed without stay. Thanks to a manufactoring process per moulding, original, innovating and certified in each factory of production, beams RECTOR offer a good quality of resistance. Controlled with each stage of manufacture, they profited from a time of hardening of the optimum concrete. All the range of beams RECTOR is certified CSTBât.
Installation without stay: a pledge of quality
Because the operation of proping and especially of removal of the stays is particularly delicate in underfloor space, RECTOR for a long time proposes a range of beams without stay.
In addition, the security of the workmen on building site is improved, in particular at the time of the casting of the concrete.
|
|

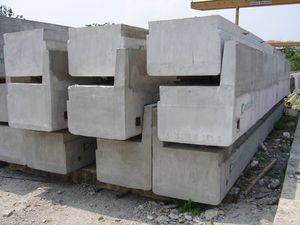

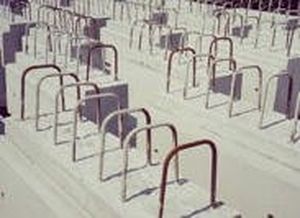

Nearly all construction problems in building and industrial construction can be surmounted extremely well using prefabricated individual elements and segments. The systems have been technically perfected and are particularly attractive in terms of price and performance - your construction budget will be noticeably relieved.
Heberger pre-engineered construction services can point to a number of reference construction projects underlining a further aspect: reinforced and prestressed, precast concrete component construction is quite comparable to "classically" constructed buildings and offers the same variety of forms and architectural aesthetics. We produce nearly every kind of construction element for building construction, civil engineering and industrial facility construction. With such a broad spectrum of services together with our strong reputation in this sector, we are able to offer tailor-made solutions for every application.
|
|
Advantages:
- Availability on stock
- Certified industrial Component
- Increased Control thicknesses of floors
- Against controlled arrow
- Handiness
- Péniblité reduced
Distinguishing marks:
- Rectilinear
- Manuportable and light
- High performance Materials
Fields of application:
- Associated with floors with case-bay Leader EMS, Isoleader, polystyrene, concrete...
- All types of buildings (dwelling, tertiary sector,...)
- Last nines or restoration.
- All levels.
- All types of loads.
|
|
|
|
