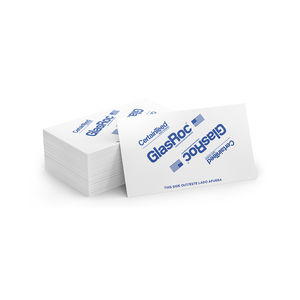

GlasRoc® Sheathing is the next generation of the industry standard for high-performance, weather-resistive, gypsum-based sheathing. And to back it up, CertainTeed provides a 12 month limited warranty against exposure and a 5 year limited warranty assuring product performance.
|
|
SHEETROCK® FIRECODE® Core gypsum panels are the original, most widely used Type X gypsum panels on the market. The panels score and snap easily for quick installation, allowing painting, decorating, and the installation of metal or wood almost immediately. They are composed of fire-resistant gypsum core encased in 100-percent recycled natural-finish face paper and 100-percent recycled liner paper on the back side. The face paper is folded around the long edges to reinforce and protect the core, and the ends are square-cut and finished smooth. The long edges of the panels are tapered, allowing joints to be reinforced and concealed with a USG Interior Finish System.
The panels are available in 5/8"-inch thickness and are UL-Classified (Type X) for application in fire -rated construction.
|
|
Same use as Exterior Gypsum Soffit Board plus a specially formulated core for use in fire-resistive designs.
ProRoc® Exterior Soffit Board, ProRoc® Exterior Soffit Type X and ProRoc® Exterior Soffit Type C Gypsum Boards are used for the underside of eaves, carport ceilings, canopies and other commercial and residential exterior applications with indirect exposure to the weather. ProRoc® Soffit Type X and Type C Board provides the same base as ProRoc® Exterior Soffit Board, plus has a specially formulated core for use in fire resistance-rated designs.
Both products consist of a solid set gypsum core covered with durable water-resistant backing paper. ProRoc® Exterior and ProRoc® Exterior Soffit Type X and Type C Boards are available in a variety of lengths.
|
|
The MH Gypsum Panel product line includes SHEETROCK® MH TUF-BASE™ Gypsum Panel, SHEETROCK® MH ULTRA-BASE™ Gypsum Ceiling Board, SHEETROCK® MH Gypsum Base Board, and SHEETROCK® MH LUNAR™ Predecorated Ceiling Board. They provide UL-Classification for shear resistance and surface burning characteristics and are available in cut-to-order lengths.
Geared to the needs of assembly-line building, these superior-grade panels are made with an extra-tough core that provides superior structural performance both during construction and while in transit.
TUF-BASE, ULTRA-BASE and SHEETROCK MH Base Board all have a composition that provides low expansion and contraction to resist buckling and warping.
All MH Gypsum Board Products are system-tested to ensure compliance with the HUD manufactured home construction standard. They contain a non-combustible gypsum core for fire resistance and meet or exceed ASTM C36.
|
|
SHEETROCK® gypsum panels are the most widely used gypsum panels on the market. They score and snap easily, allowing for quick installation and decoration.
The panels are composed of a fire-resistant gypsum core encased in 100-percent recycled natural-finish face paper and 100-percent recycled liner paper on the backside. The face paper is folded around the long edges to reinforce and protect the core, and the ends are square-cut and finished smooth. The long edges of the panels are tapered, allowing joints to be reinforced and concealed with a USG Interior Finish System.
The panels are available in three thicknesses:
1/2" −Recommended for single-layer applications in new residential construction.
3/8" −Recommended for residential repairs and remodeling in single or double-layer applications.
1/4" --Recommended for residential repairs and remodeling in single or double-layer applications (in particular on curved surfaces).
|
|
|
|
|
|
FIBEROCK® Aqua-Tough™ tile backerboard is a unique, fiber-reinforced gypsum product that represents a new era in substrate performance for wet or dry areas, as recognized within the TCNA Handbook and International Residential Code. This durable panel offers superior performance and tile bond in addition to an integral water-resistant core.
Unlike traditional water-resistant gypsum board, FIBEROCK Aqua-Tough tile backerboard derives both strength and water-resistance from its uniform composition. Made of a uniquely engineered gypsum/cellulose-fiber combination, it is strong, water resistant, and mold resistant, scoring a 10, the highest possible rating on ASTM D 3273. With no paper face to delaminate, tear, or scratch, it maintains its integrity, even when wet.
The backerboard can be finished with ceramic tile or painted, and has a 20 year limited warranty. It is environmentally friendly, made from 95-percent recycled materials, earning it Green Cross Certification from Scientific Certification Systems.
|
|
With increased resistance to indentation and penetration, FIBEROCK® Aqua-Tough™ interior panels outperform paper-faced and glass, mat-faced panels. They are suitable for use on walls, ceilings, and exterior dry soffit applications, offering abuse-, moisture-, mold-, and fire-resistance.
These high-performance panels derive both strength and water resistance from their uniform composition. As a result, they won’t lose their strength when cut. And they are ideal for wet areas, because their panel surface will not delaminate when wet.
They provide a smooth, paintable surface that can also be finished with ceramic tile. One type of panel can be used for an entire room, shortening job schedules and lowering in-place costs.
They are made from 95-percent recycled materials, an environmentally friendly option for use in sustainable building construction.
|
|
|
GTEC Fire Board has one decorative pink face with either a tapered edges, or square edge profile and a grey faced back liner, and is suitable for installation with stud partitions, lining systems and ceilings that require superior fire performance.
|
|
|
GTEC Base Board is a square edged gypsum plasterboard with grey faces on both sides, suitable as a lining on ceilings requiring skim plastering.
|
|
|
Standard plasterboard with 12mm round perforations.
|
|
|
GTEC Megadeco has one decorative white face with tapered edges and a grey faced back liner, suitable for installation with stud partitions, lining systems and ceilings that require superior acoustic, fire and impact performance.
|
|
|
GTEC Hydrodeco board has one decorative white face with tapered edges and a green faced back liner, and is suitable for installation with stud partitions, lining systems and ceilings that require superior moisture resistance such as bathrooms.
|
|
· Doubling insulation PRÉGYSTYRÈNE%u2122 Th38 Hydro BA10+80 is a composite panel consisted gluing of a plasterboard resistant to PRÉGYDRO%u2122 moisture on expanded a polystyrene insulation panel certified ACERMI.
· It is a complex thickness 90 mm of thermal resistance R = 2,15 m ². °C/W.
· It is intended for the realization of the thermal doubling of the interior walls in wet buildings.
|
|
· Doubling insulation PRÉGYSTYRÈNE%u2122 Th38 Hydro BA10+80 is a composite panel consisted gluing of a plasterboard resistant to PRÉGYDRO%u2122 moisture on expanded a polystyrene insulation panel certified ACERMI.
· It is a complex thickness 90 mm of thermal resistance R = 2,15 m ². °C/W.
· It is intended for the realization of the thermal doubling of the interior walls in wet buildings.
|
|
Its innovation lies in the perimeter structure in sound-proof, vibration-proof wood, which assures greater rigidity for the box frame.
The upper transom is made in plywood which, with the wooden rear doorstop is an integral part of the frame, improving both transport and installation.
There is a drastic increase in space inside the frame, and this improvement allows for the installation of thicker doors, with profiles of up to 48/70 without double plates.
WOODEN PERIMETER STRUCTURE
SOUND- AND VIBRATION-PROOF
PLYWOOD REAR DOORSTOP AND TRANSOM
MORE SPACE INSIDE THE FRAME
|
|
Simplicity and effectiveness: these are the features of the FUTURA KIT.
This box frame for plasterboard is easy to install on all standard models, and can be adapted for the many sliding solutions available for double doors.
VERSATILE
VIBRATION-PROOF
SOUND-PROOF
EASY TO INSTALL
|
|
|
|
