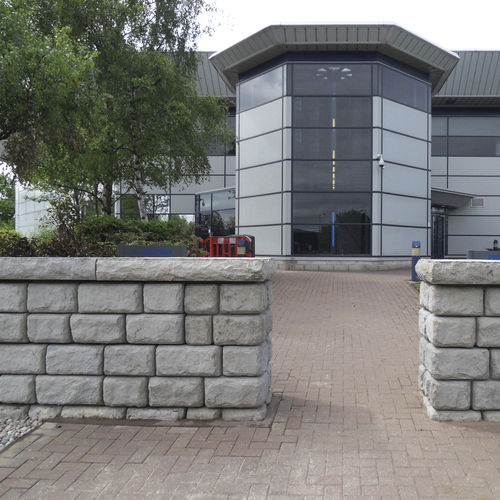

Redi-Rock™ hostile vehicle mitigation walling (Vehicle Security Barriers – VSB) is an effective, re-usable solution to perimeter hostile vehicle attack. Ideal for utility and critical infrastructure, building of high importance, military facilities, crowded places, civil/nuclear installations and transport hubs.
The Redi-Rock™ Force Protection system has been successfully tested by the Transport Research Laboratory (TRL) using the BSi specification PAS 68:2007, and achieved a classification of V/7500[N2]/48/90:1.6/0.0. To achieve this the freestanding concrete blocks systems interconnected with steel cable successfully arrested a 7.5 tonne lorry at impact speed of 48 kmph (30mph) with only 1.6m penetration of the load carrying space.
System advantages
Fast to install Lego™ like system (30m can be laid in circa 1.5 hours by 2-3 men)
Removable / Relocatable
No ground anchor – uses its own weight
Integral cable dissipates kinetic energy
Proven to stop a 7.5 Tonne truck at 48 kmph (30mph)
Aesthetically pleasing, with the look of natural stone
Can be coloured to blend with local environment
Easy to install
The 703kg freestanding blocks can be deployed, or picked up and moved, very quickly, with no ground work required.
All block styles are available with 75mm Horizontal Tube (for post tension cable) and/or 150mm Vertical Tubes (for mechanical tie-down bolts) to allow the blocks to be used in a Force Protection application.
