modular formwork / frame / lightweight / steel
DESTIL MINI Farina Formworks

{{requestButtons}}

Characteristics

  • Type:

    modular, frame, lightweight

  • Material:

    steel, plywood

  • Applications:

    wall

Description

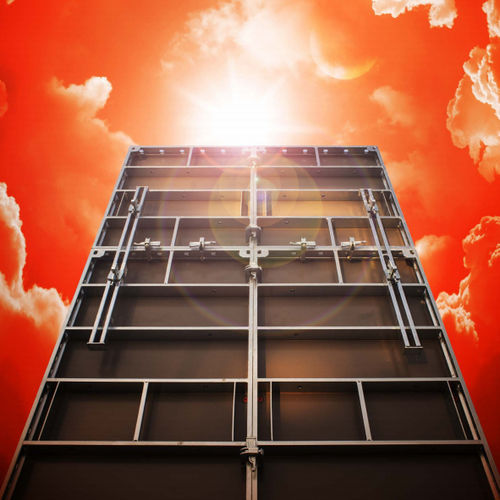

DESTIL MINI, is the latest product of Farina Formworks: a light steel frame formwork, handset and therefore avoiding the use of crane and maintaining a high flexibility, thanks to its modularity.

If you don't want to use crane and you want a LIGHT system, DESTIL MINI 60kn is the best product for your market and your business: it’s a formwork that you don’t need the crane, reduced weight and smaller, light and fast. It’s galvanized and so it’s perfect also for renting.

Destil MINI is 100% compatible with DOKA Frami !

Modules have widths from 0.30 to 0.90 m and heights of 3.00, 2.70, 1.50 and 1.20 m, to match any construction need. The panel of 0.75 X 3.00 has a weight of 70 Kg. Profiles are hot dip galvanized, in high strength S355MC steel, with a surface of 15 mm thick Finnish birch plywood, with a 220 g/sqm phenolic coating or plastic coating on request.

Destil Mini is Farina Formworks most ergonomic vertical system, due to its reduced weight. Any concrete structure will be an easy task with Destil Mini, the ideal system for medium to small construction sites.

STEEL
highly resisting Steel, S315M type C . Frame depth: 92 mm Finishing:hot dip galvanization

CRANE ISN’T MANDATORY
the relevant weight reduction (panels weigh around 30 kg/sqm) permit to assemble, dismantle and shift the system components by handset!

MAX CONCRETE PRESSURE
60 kN/m2 up to H 3m (no vertical stacking of panels) 40 kN/m2 over H 3m (with stacking of panels)

HIGH-QUALITY PLYWOOD
15 mm birch quality-plywood or a plastic-coated plywood that survives 3 times longer.
