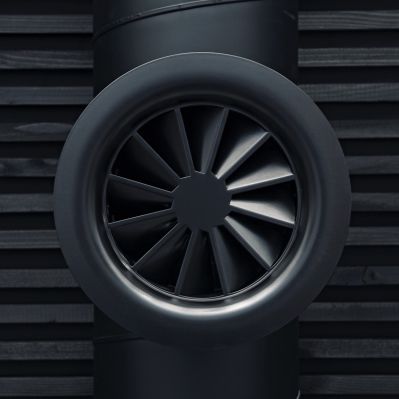

Round steel swirl diffuser with fixed blades for air supply with high induction, i.e. an efficient reduction of room temperature differences. Ideal for the supply of strongly cooled and heated air with optimal conservation of comfort. The flat, simple and sleek design has an aesthetical added-value for designers and building owners. Extensive mounting options. Standard finishing RAL 9010.Circular steel swirl diffuser with fixed vanes in a round frontplate.
Optimal room comfort
Appropriate for both VAV and CAV applications
Available in different executions and finishes
Ceiling
Swirl
Airflow direction Horizontal
Airflow type Swirl/Supply, exhaust
Shape Round
Available sizes Ø100, 125, 160, 200, 250, 315, 400, 500
Standard material Powder-coated sheet steel
Standard finishing RAL9010
Product finishing options Powder coating RAL
Perforated pressure distribution plate Yes
Spigot Class D spigot with double lip seal
Volume control Perforated volume flow control disk inside the spigot
Material Galvanised steel sheet, PP/TPE spigot
Optional insulation Melamine 6mm
Mounting options Mounting eyes (Ø7mm) standard, mounting brackets available
Perforated pressure distribution plate Yes
Material Galvanised steel sheet
Mounting options Mounting eyes (Ø7mm)
Duct Fixed by lateral screws
Plenum Fixed by lateral screws, or removable by central screw (with cover cap)
Transition piece Fixed by lateral screws, or removable by central screw (with cover cap)
