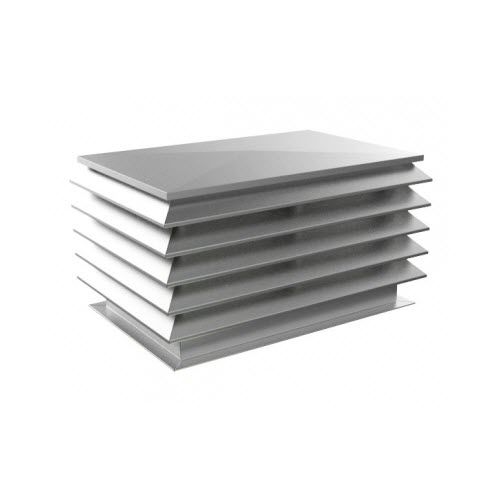

Aluminum ventilation grill WBP

stainless steelgalvanized steelrectangular

The penthouse WBP is used for the supply and/or exhaust of ventilation air in airconditioning installations. The aluminium penthouse can be supplied in various dimensions to enable connecting different ventilation units to the louvre. A combined construction is also possible, one has the function of exhaust louvre and the other has the function of supply louvre. The horizontal blades are weatherproof. The penthouse construction makes it suitable for applications demanding high aesthetic standards. Aluminium penthouse equipped with horizontal rainproof blades, closed upper side and birdscreen. Horizontal blades under 45° and distance between the blades is 80 mm. Can be used for supply or exhaust louvre, it is possible to combine the two functions. Outdoor 1 way throw Exhaust Rectangular execution Airflow type Exhaust or supply, / Rainproof Optional Partition available for dual use exhaust/supply 50/50% Available steps in length 1 mm Available steps in width 1 mm Min. height 220 mm Max. height 2140 mm Available steps in height 80 mm Height mounting profile 50 mm Standard material Untreated aluminium blades 45° Standard finishing Untreated aluminium Product finishing options Powder coating RAL / At least two dimensions should be <=1800 mm Wire mesh Galvanised steel 12,7x12,7 mm / Stainless steel 11,7x11,7 mm Mounting profile options Standard, reversed, Z-type
