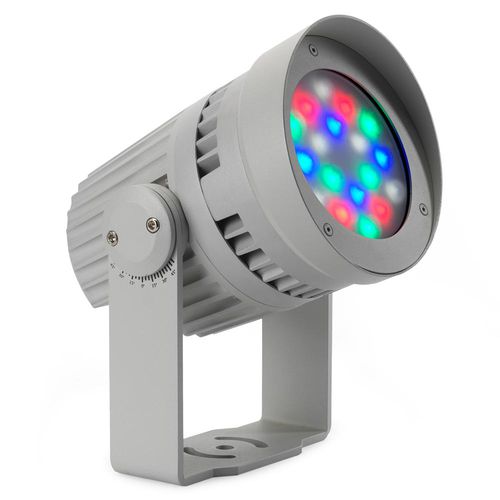

Exterior™ Wash 100 is a powerful, compact and energy-efficient LED lighting fixture designed to illuminate smaller structures, features of a building and landscaping. A discreet, optional snoot integrates seamlessly with the slick design of the fixtures. It has built-in display for ease-of-use, a wide selection of beam angles and is fully IP-rated for permanent outdoor use.
The Exterior Wash 100 is designed for narrow beam applications and is based on separate LEDs for red, green, blue and white
Narrow beam configuration with 6 beam angle options
Functional and discreet optional snoot which integrates with the design of the fixtures
Control via DMX, RDM and OLED display
Up to 1800 lumens at full white (RGBW)
Six different beam angle options
Internal power and control (DMX, RDM and OLED display)
0–100% intensity control
Powerful Single-color R,G,B,W LEDs
Up to 1800 lumens at full white (RGBW)
Six different beam angle options
Internal power and control (DMX, RDM and OLED display)
Rugged IP66 housing
0–100% intensity control
Color mixing: RGBW
Intensity: 0 - 100%
Control systems: DMX, RDM
Setting, addressing, standalone programming: Control panel with OLED display
Stand-alone control: Up to 20 scenes with global fade/hold times
DMX channels: 3-5 depending on DMX mode
Receiver: RS-485
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Firmware update: Serial upload via DMX link
Light source: 4 x R, 5 x G, 4 x B, 5 x W single-color LEDs
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
LED manufacturer: Cree
Beam Angle Options:
No diffuser: 7.5°
Narrow diffuser: 11.5°
Medium diffuser: 22°
Wide diffuser: 50°
Very wide diffuser: 60°
