self-closing - thermostat

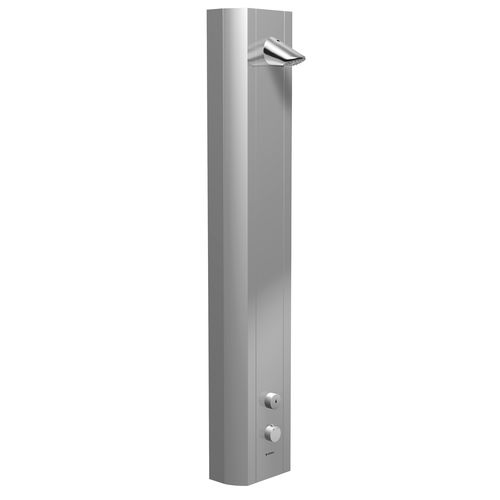

Shower panel made of solid extruded aluminium profile with high quality anodized surface and integrated SCHELL shower fitting type LINUS D-SC-T
Easy to install and to maintain through pivoting front bowl, suitable for rear connections or exposed connections from above. Enclosure has space for additional solenoid valve to provide for the thermal disinfection.
With shower head COMFORT, 13°
SCOPE OF DELIVERY:
panel with pre-assembled LINUS shower fitting with integrated selfclosing cartridge SC and thermostat cartridge including piping between fitting and shower head connection
thermostat cartridge with safety interlock in case of cold water breakdown
operating button thermostat valve with hot water interlock 38°C
locking disc for maximum temperature limiting (protection against scalding)
2 backflow preventers (BP, DIN EN 1717: EB)
operating button selfclosing SC-V
shower head: flow rate max. 9 l/min independent of pressure
fastening material
connection accessories
FIELD OF APPLICATION / TECHNICAL DATA:
flow rate fitting: ≤ 10,0 l/min at 3 bar flow pressure
flow pressure: 1,0 - 5,0 bar
water temperature max. 70 °C (short-time-use)
running time adjustment 5 to 30 s
Dimensions: 1200 mm x 226 mm x 115 mm
Panel prepared for connection to existing exposed connections from behind and exposed inlet pipes from above
