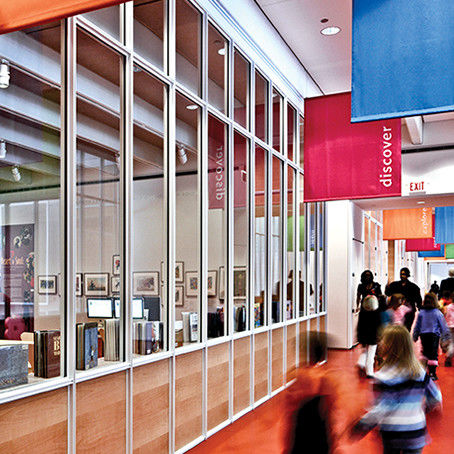

Fireframes® Aluminum Series combined with Pilkington Pyrostop® glass, provides a barrier to radiant and conductive heat transfer. The narrow aluminum profiles allow unlimited areas of glazing in interior and exterior fire separations.
KEY FEATURES
Fire ratings of 45-120 minutes
Patented system features extruded aluminum framing with crisp edges and narrow sightlines
Custom aluminum face caps available to meet project needs
Easy installation
Frames supplied "K-D" (knock-down) ready for installation
Incorporates large individual panes of Pilkington Pyrostop fire-resistive-rated glass, composed of Pilkington OptiWhite™ glass and clear intumescent interlayers
Compatible with doors in full-lite single leaf or double leaf design from TGP (see Fireframes Designer Series or Fireframes Heat Barrier Series)
Standard finish is clear anodized. Powder coating and other anodized finishes are available
Door hardware available to fit functional requirements. Check with TGP for compatibility
Passes wall assembly test standard UL 263 / ASTM E119 for 60 and 120 minute ratings
