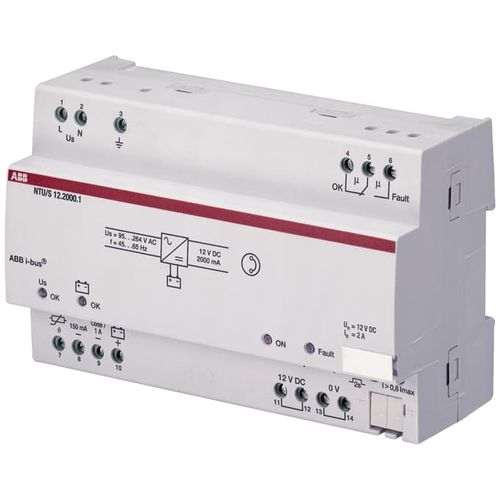

DC/DC power supply NTU/S12.2000.1

KNX

delivers sufficient power for all types of demanding applications with a buffered output voltage of 12 V DC (SELV) and a maximum output current of 2 A. Operating malfunctions of the power supply are signalled via a changeover contact and can be sent for evaluation purposes. Up to two 12 V DC sealed lead-acid batteries (gel cell) can be connected in parallel with the power supply, in conjunction with the KS/K 4.1 and KS/K 2.1 cable sets, or the AM/S 12.1 battery module. Dimensions Product Net Depth / Length:64.5 mm Product Net Height:90 mm Product Net Width:144 mm Product Net Weight:0.379 kg Technical Compatible Bus Systems:KNX (TP) Degree of Protection:IP20 Mounting Type:DIN-rail Width in Number of Modular Spacings:8
