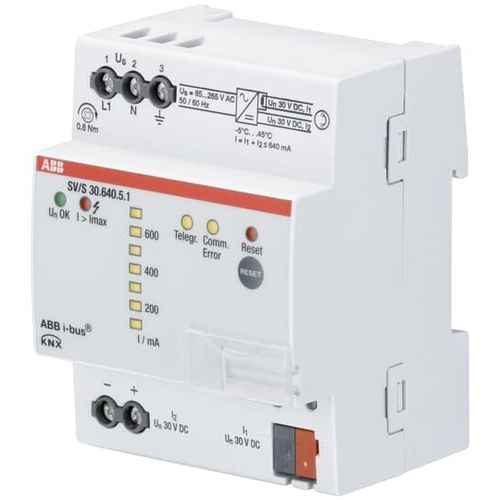

Compact Power Supply 640 mA with integrated choke. Quick diagnostics by LED display and ETS communication objects. Analysis of the operating state and the bus line possible by means of ABB i-bus tool. Additional voltage output to supply an additional line in conjunction with an additional choke.
Dimensions
Product Net Depth / Length:64.5 mm
Product Net Height:90 mm
Product Net Width:72 mm
Product Net Weight:0.26 kg
Technical
Compatible Bus Systems:KNX (TP)
Degree of Protection:IP20
Mounting Type:DIN-rail
Width in Number of Modular Spacings:4
