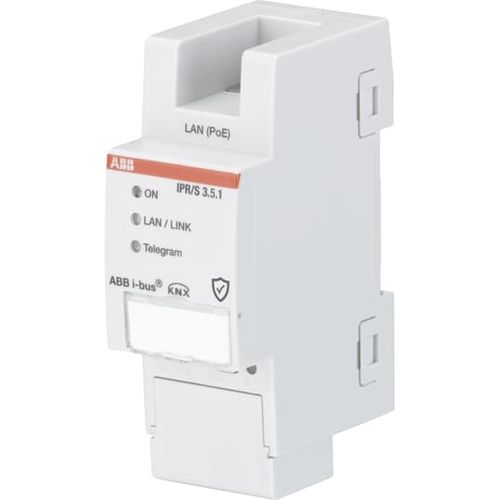

KNX line coupler IPR/S3.5.1

Connects the KNX bus with the Ethernet network and encrypts communication on the IP backbone. The device uses the KNXnet/IP Secure protocol for communication (Routing and Tunneling). It can be used as a fast line and area coupler. The full filter table for main groups 0-31 is supported. KNX devices can be programmed via the LAN using ETS. For this and further clients 5 Secure Tunneling Servers are available. The IP address can be fixed or can be received from a DHCP server. Power supply via 12…30 V DC or PoE (IEEE 802.3af class 1). The KNX Standard Communication (Multicast) can be switched off. In this case, up to 10 IPR/S 3.5.1 can communicate using unicast communication. Dimensions Product Net Depth / Length:64.5 mm Product Net Height:90 mm Product Net Width:36 mm Product Net Weight:0.1 kg Technical Compatible Bus Systems:KNX (IP) KNX (TP) Degree of Protection:IP20 Mounting Type:DIN-rail Width in Number of Modular Spacings:2
