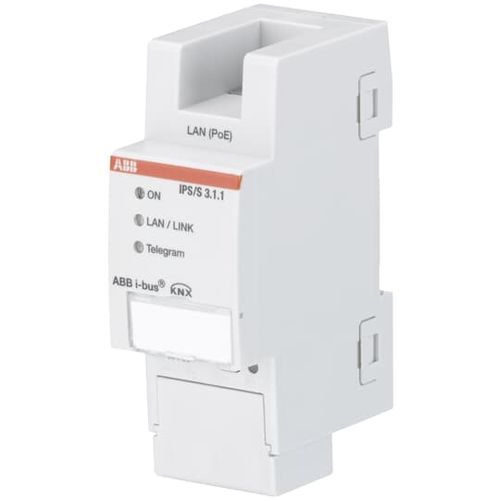

Connects the KNX bus with the Ethernet network. The device uses the KNXnet/IP protocol for communication (Tunneling). KNX devices can be programmed via the LAN using ETS. For this and further clients 5 Tunneling Server are available. The IP address can be fixed or can be received from a DHCP server. Power supply via 12..30 V DC or PoE.
Dimensions
Product Net Depth / Length:64.5 mm
Product Net Height:90 mm
Product Net Width:36 mm
Product Net Weight:0.1 kg
Technical
Compatible Bus Systems:KNX (IP)
Degree of Protection:IP20
Mounting Type:DIN-rail
Width in Number of Modular Spacings:2
