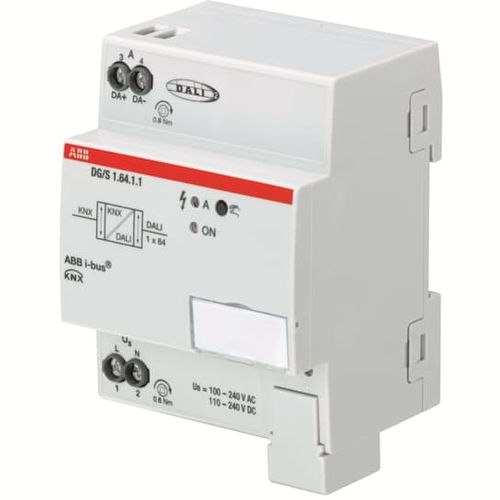

Gateway interface module DG/S1.64.1.1

for home automation systemsKNX

For controlling DALI devices via the ABB i-bus®. One DALI output for up to 64 DALI slaves. DALI power supply is integrated. Control and status feedback is carried out via KNX per DALI slave (64), with lighting groups (16), together in broadcast or per scenes (16). Extensive fault and error messages are available Self-contained emergency converter (64) acc. EN 62386-202 will be supported. By means of KNX and emergency converter different emergency tests (e.g. function and duration test) can be triggered. Feedback is sent. Slave-, staircase-, force-, block- and scene- function are integrated. DALI telegram rate can change. For diagnostic use and individual change of the DALI address or group assignment a separate Software-Tool is available Dimensions Product Net Depth / Length:63.5 mm Product Net Height:90 mm Product Net Width:70 mm Product Net Weight:0.133 kg Technical Compatible Bus Systems:DALI KNX (TP) Degree of Protection:IP20 Mounting Type:DIN-rail Width in Number of Modular Spacings:4
