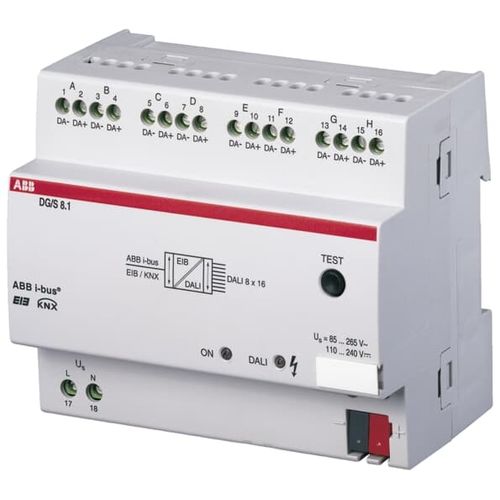

Gateway interface module DG/S8.1

DIN railfor home automation systemsKNX

DALI gateway, 8-fold, MDRC For controlling DALI devices (electronic ballasts, transformers etc.) via the ABB i-bus®. There are 8 separate, independent DALI outputs/channels available. Up to 16 DALI devices can be connected per channel with a maximum of 128 devices on the gateway. The functions of switching, dimming, set values and fault indication for lamps and electronic ballasts are available for each output. It is possible to set the lamp burning time and 16 lightscenes. The addressing or commissioning of the DALI devices is not necessary. Dimensions Product Net Depth / Length:64.5 mm Product Net Height:90 mm Product Net Width:108 mm Product Net Weight:0.266 kg Technical Compatible Bus Systems:KNX (TP) DALI Degree of Protection:IP20 Mounting Type:DIN-rail Width in Number of Modular Spacings:6
