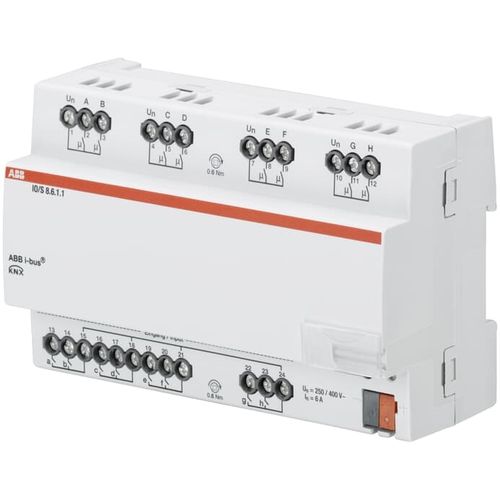

For the control of loads in residential areas, typically in hotel rooms and apartments. The I/O Actuators provide binary inputs for the connection of conventional push-buttons and outputs for switching loads. Inputs and outputs can be internally connected by ETS. By integrating the devices into KNX networks further functions can be realised: e.g. central control or room based emergency calls to a control centre.
Dimensions
Product Net Depth / Length:64.5 mm
Product Net Height:90 mm
Product Net Width:144 mm
Product Net Weight:0.3 kg
Technical
Compatible Bus Systems:KNX (TP)
Degree of Protection:IP20
Mounting Type:DIN-rail
Width in Number of Modular Spacings:8
