Edge-to-edge partition SATINE

aluminumlaminatesteel

Overview

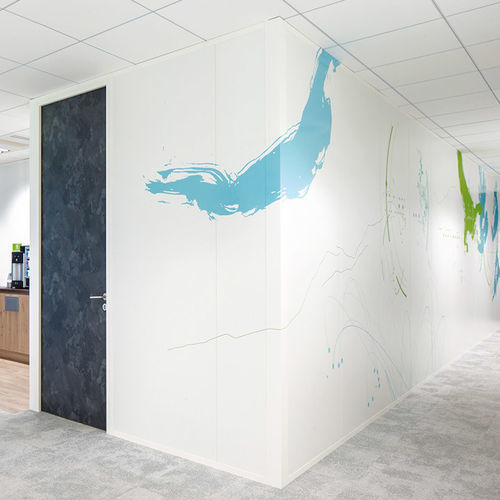

Satine partitions are opaque office partition systems for creating enclosed workspaces and meeting rooms. Available in edge-to-edge (flush) or gap-joint configurations, panels are finished in melamine, laminate or lacquered steel sheet. Systems are supplied with an aluminium frame and veneered or finished panel edges and are offered within the Partition® 40 and Partition® 100 ranges.

Variants

• Satine edge-to-edge: melamine or laminate panels installed without visible joint covers (flush finish).
• Satine Metal: panels faced with magnetized lacquered steel sheet, suitable for attachment of magnetic accessories; M0 classification for compliance with high-rise building specifications.
• Satine gap-joint: panels mounted with an 8 mm recessed gap (black or silver) and compatible patch fittings.

Features

• Edge-to-edge (flush) or 8 mm gap-joint finish
• Panel faces: melamine, laminate or lacquered steel sheet
• Aluminium partition frame; edges veneered or finished according to panel type
• Acoustic attenuation up to 53 dB

Technical specifications

• Product family: Satine (opaque edge-to-edge / gap-joint partitions)
• Available ranges: Partition® 40 and Partition® 100
• Panel face materials: melamine, laminate, lacquered steel sheet
• Satine Metal: magnetized lacquered steel sheet panels, M0 classification
• Gap-joint recess: 8 mm (black or silver finish)
• Assembly: aluminium partition frame; melamine panels with veneered edges or steel sheets with finished edges
• Acoustic performance: up to 53 dB sound attenuation
