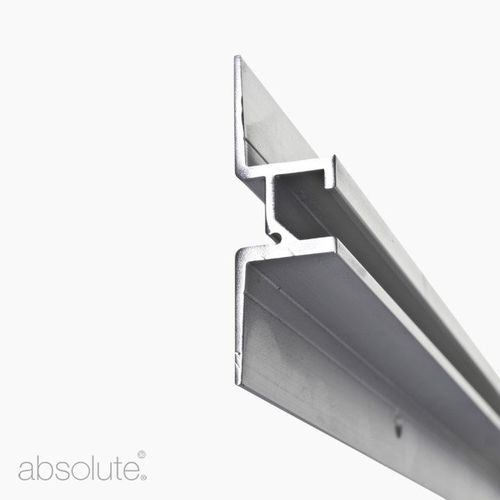

Rail system H6100 series

This is our most robust and our most discreet track, with a narrow slot of just 8mm visible when the track is finished flush with the wall. The Flush Mount Track should be considered and specified pre-construction as installation occurs just prior to plaster board or other wall liners. Key Features of the Flush Mount Track: • This track is designed to be recessed, incorporated into the wall during construction and the finish is flush with the wall surface • Our most discreet track system – aperture just 8mm • Architectural and sleek track system for Hanging Artworks • Use in conjunction with our Flush Mount Hanging Sets or hang directly on the track • Choice of white or silver • Comes in 2.5m lengths Material & Finish: Anodised aluminium extrusion that is available in either soft silver finish or white Dimensions: 15mm width x 55mm vertical height. Sold in 2.5m lengths. Installation: Pre-drilled 300mm centres and cut to length on site. Flush Installation: The face of the Flush Mount Track must be flush with the finished wall surface in order for the art hanging Top Blocks to slide into the hanging slot. Weight Loading: Fixings must be into hardwood or metal for maximum support. The standard fixing (300mm) will support artworks up to 150kgs when hung on two suspended supports.
