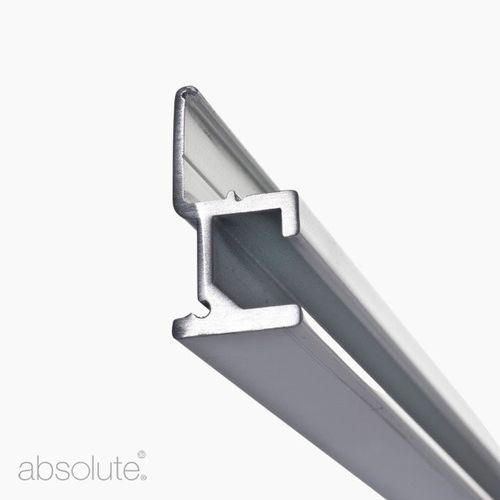

Rail system T

T Track is highly discreet as it is designed to be recessed above the wall liner and tight against the ceiling or under a cornice. This provides an architectural transition that is flush with the lower wall. T Track should be considered and specified pre-construction as installation considerations should occur prior to plaster board, other wall liners or cornice work. It can be fitted during construction, or a clean reveal can be prepared for an after construction fit. This track can also be built out to occur over deeper fabric wrapped or other material panels. We recommend the T Track Cover to ensure a clean finish. Key Features of the T Track: • An architectural and sleek track system for Hanging Artworks • Modular-use in conjunction with our T Track Hanging Sets • Can be incorporated into the wall during construction • Works above wall liners and panels for a flush wall look • Designed to fit under cornices • Choice of white or silver • Comes in 2.5m lengths Material & Finish: Anodised aluminium extrusion that is available in either soft silver finish or white Dimensions: 15mm width x 31mm vertical height. Sold in 2.5m lengths Installation: Pre-drilled at 300mm centres and easy to cut to length on site. We recommend mitring inside and outside corners with a chop saw. Weight Loading: Fixings must be into hardwood or metal for maximum support. The standard fixing (300mm) will support artworks up to 150kgs when hung on two suspended supports.
