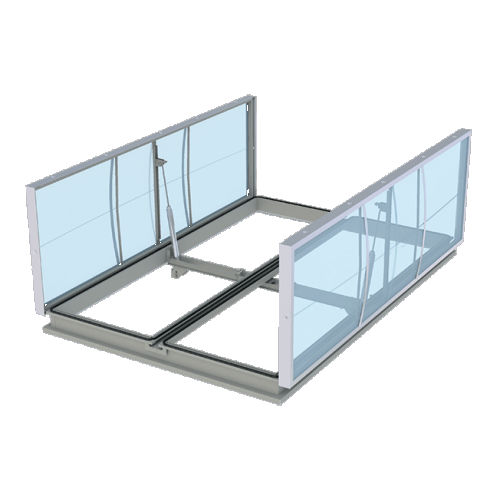

Polycarbonate smoke vent BLUECOIF THERM DV PNEU

smoke and heat extractor

Bluecoif therm DV Pneu is a device for renovation with thermal improvement upstand with pneumatic energy. NSHEV is used for the natural smoke ventilation of buildings. Others infills and grille available in option. 4 aeraulic finish: S, M, L and XL. - Arc = 9.7 m2 - AP = 0.9 m3/h/m - I4 = 0.11 m3/h/m - 16 mm opal cellular PC (PCA) infill - Oblique covering upstand, 150 m, insulated, 30 mm (Version S) - Oblique covering upstand, 300 mm, insulated, 30 mm(Versions M, L and XL) - Seal on the perimeter of the upstand - Electrical thermofuse gauged at 100°C
