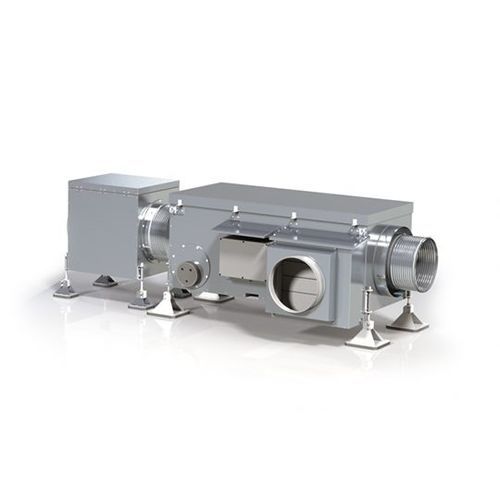

Residential heat recovery unit AWN BASIC

commercialfor home

In this version (formerly called AWN-RV and AWN-DV), AWN can be associated with third-party heat pumps via a brine buffer. The AWN Basic is a combination of an air exhaust module and a heat exchanger to ensure heat recovery. The AWN Basic can be used, for example, if the heat pump technology is already installed in a building. To do this, it must have a big enough heat sink, for example via a laminated storage tank, so that the AWN Basic can be fed with a cold enough fluid (0 ° C maximum) and that large amounts of heat can thus be extracted from stale air. Because heat vapors are not specifically designed to reuse waste heat, sufficient brine buffer (stratified storage tank) is required to ensure more homogeneous heat transfer. To allow consistent operation and continuous transfer of available heat from stale air, a combination with Aereco’s Connect WP (without brine buffer) must be used (see product : AWN Connect). 2 types of ventilation module: RV for indoor installation & DV for outdoor installation Constant pressure control: ideal for demand-controlled ventilation Easy to maintain: motor easily accessible by a trapdoor to clean the blades Silent: acoustic foam on the entire envelope and sound trap available on request, optional. Free choice of heat pump To be combined with a suitable heat pump In order to effectively dissipate heat lost in the heat exchanger, it must be cooled as much as possible with cold brine. On the other hand, the brine temperature must then be raised to a usable level in order to effectively introduce heat into the building. The AWN Basic must always be associated with a suitable heat pump.
