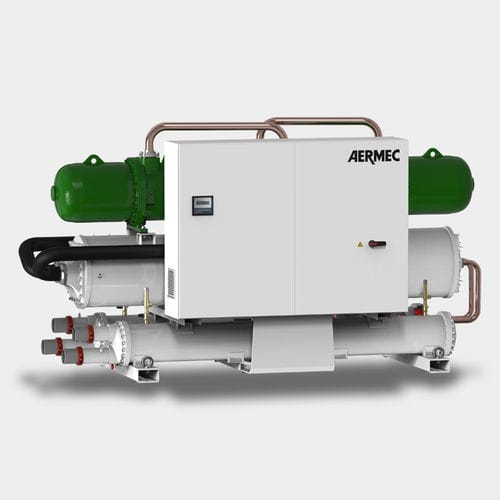

Water/water heat pump WFN

water/water heat pump
water/water heat pump
Add to favorites
Compare this product


residential, commercial, industrial
Interior/exterior unit
for indoor installation
reversible, for heating only
Heat output

Max.: 2,610 kW

Min.: 205 kW

Cooling power

Max.: 2,349 kW

Min.: 182 kW

Noise level

79 dB, 80 dB, 81 dB, 82 dB

Interior unit height

1,720 mm, 1,790 mm, 1,865 mm, 1,887 mm, 1,920 mm (68 in)

Interior unit width

3,445 mm, 3,470 mm, 3,480 mm, 3,560 mm, 4,100 mm (136 in)

Interior unit depth

1,450 mm, 1,510 mm, 1,610 mm, 1,630 mm, 1,645 mm (57 in)


Heat pump with reversible water side for indoor installation. Suitable for large-sized services in residential, commercial and industrial buildings. With the addition of a desuperheater or total recovery system, domestic hot water can also be produced. R134a refrigerant R513A (XP10) refrigerant (Option) Cooling only Heating only Twin screw compressor Shell and tube exchanger Heat recovery (Option) Lownoise version (Option) Network operation (Option) Compatible with ModBus protocol (Option) Internet connection (Option) Indoor unit for producing chilled or heated water, with R134a refrigerant and twin screw compressors. Adapts to various load conditions thanks to precise temperature control. Produces chilled water up to 16 °C (processed water, evaporator side) and can also be used with a heat pump with a processed water temperature (on the condenser) of up to 55 °C. Both heat exchangers (source side and system side) are of the shell & tube type. The electronic expansion valve is a standard on all the sizes and ensures excellent flow regulation and accurate temperature control, even with partial loads. R513A refrigerant is also available via the configurator.
