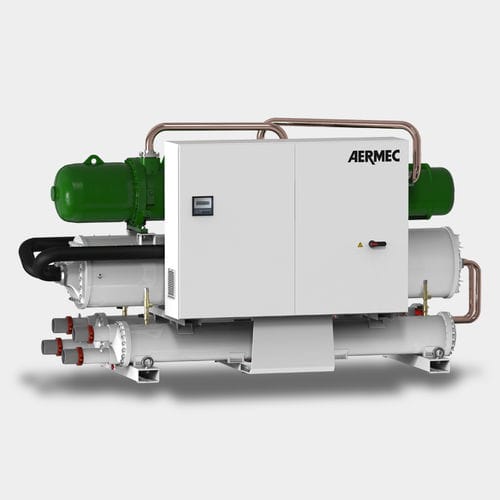

Water/water heat pump WFGI

residentialcommercialindustrial

Heat pump with reversible water side for indoor installation. Models with standard condensation or optimized for high temperatures available. Suitable for large-sized services in residential, commercial and industrial buildings. With the addition of a desuperheater or total recovery system, domestic hot water can also be produced. R1234ze refrigerant R515B refrigerant (Option) Cooling only Heating only Inverter twin screw compressor Shell and tube exchanger Heat recovery (Option) Lownoise version (Option) Network operation (Option) Compatible with ModBus protocol (Option) Internet connection (Option) Indoor unit for producing chilled or heated water, with R1234ze refrigerant and twin screw inverter compressors. Adapts to a wide variety of load conditions thanks to precise temperature control. Produces chilled water up to 20 °C (processed water, evaporator side) and can also be used with a heat pump with a processed water temperature (on the condenser) of up to 65 °C depending on the model. Both heat exchangers (source side and system side) are of the shell & tube type. The electronic expansion valve is a standard on all the sizes and ensures excellent flow regulation and accurate temperature control, even with partial loads. R515B refrigerant is also available via the configurator.
