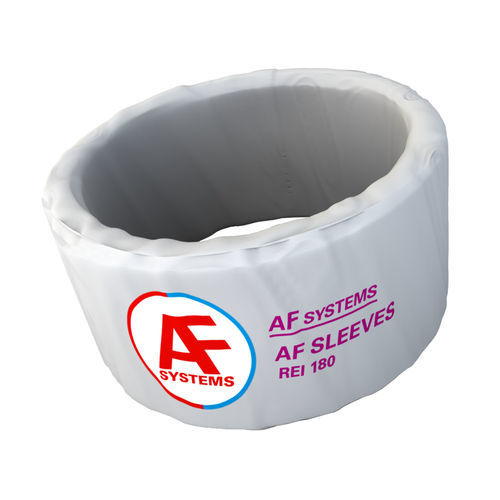

AF SLEEVES are pre-shaped intumescent sleeves certified under EN 1366-3 for up to EI 240 sealing of combustible pipe penetrations in walls and floors.
Made of a material with a high thermal-expanding capacity, when heated, AF SLEEVES seal the pass-through pipe by completely filling the gap left by the combustible pipe collapse. The product's reduced thickness enable its application around the pipe directly inside the rigid structure.
Available sizes: from 30-160 mm;
Free expansion: >20:1;
Activation temperature: ± 180°C;
Pressure generated: 10 Bar;
Thickness depending on the diameter;
Height 50 mm.
Direct Application
Combustible pipes.
Certifications
Class EI 240 (EN 1366-3) rigid floor;
Class EI 180 (EN 1366-3) rigid wall.
Packaging and Storage
Cardboard boxes.
Unlimited under normal storage conditions.
Specification
Supply and application of AF SLEEVES intumescent sleeves, which have an expansive capacity of more than 20 times the initial volume, covered in polyethylene, for protection up to EI 240 of combustible pipe penetrations in walls and floors.
Application Method
1. wrap AF SLEEVES around the combustible pipe;
2. secure the sleeve with adhesive tape and insert it into the wall or floor;
3. complete the sealing with a concrete casting (mortar or concrete).
Reason to choose AF Sleeves
reduced thickness of the product;
easy and simple installation;
installable in low accessibility situations.
