Two-component fire-resistant polyurethane foam
AF GRAPHIT FOAM is a two-component polyurethane foam with graphite added and certified under EN 1366-3 for
EI 180 protection of mechanical and electrical system penetrations in walls and floors.
Technical features
Using graphite, the foam expands during application and heat during a fire. This property makes the product versatile and suitable
for combustible material penetrations, which would be destroyed during a fire.

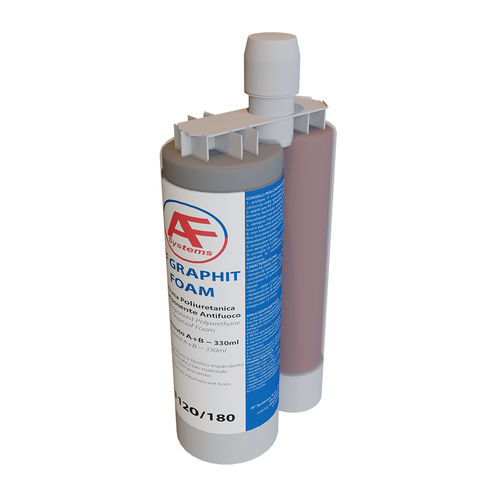

The special cartridge, with the help of a spray gun, allows the simultaneous extrusion of the two components and their mixing inside the application nozzle.
AF GRAPHIT FOAM is a simple and flexible solution, ideal for openings with several pass-through close elements.
Cartridge capacity: 330 ml;
Colour: dark brown;
Reaction time: about 10 sec;
Drying time: about 30 sec;
Ready to cut: Approx. 1 min;
Increase in volume at 20 °C 3-5 times (free expansion);
Yield: 1000-1700ml approx;
Storage temperature: 5-35 °C;
Application temperature: 10-35 °C.
Application Method
Electrical cables and corrugated pipes in a cable tray;
Combustible pipes;
Multilayer pipes including bundles;
Insulated and uninsulated metal pipes;
Mixed penetrations.
Certifications
Class EI 180 (UNI EN 1366-3) rigid floor;
Class EI 120 (UNI EN 1366-3) plasterboard wall..
