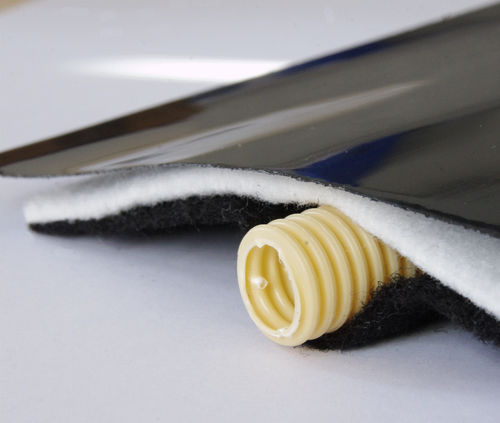

Non-woven drainage membrane DRAINTUBE GAZ

polypropyleneprotectiondrainage

The remediation of former industrial sites with contaminated soil, including radon which poses a risk to human health, means that gas drainage must be implemented, along with a waterproofing or water barrier solution via membrane. The combined solution DRAINTUBE® GAZ + waterproofing AFIFLEX EVOH membrane + geotextile ST300 installed horizontally under the concrete slab constitutes a real barrier against radon and other gases from the ground. Containment is based on the application of a drainage geocomposite to create a preferential path and prevent gas from accumulating below the membrane under the building. Drained gases are discharged to one or more collectors placed on the periphery of the treated area, and connected to one or more outlet stacks. Water barrier or waterproofing Under certain conditions, providing a water barrier by overlapping membrane strips is sufficient, while in other cases waterproofing the geomembrane by welding is necessary to contain gases. Benefits Quick and cost-effective technical solution Genuine gas-tight barrier thanks to the AFIFLEX EVOH membrane Designed by an approved design office Avoids the treatment and removal of contaminated soil Concrete slab directly onto the geotextile
