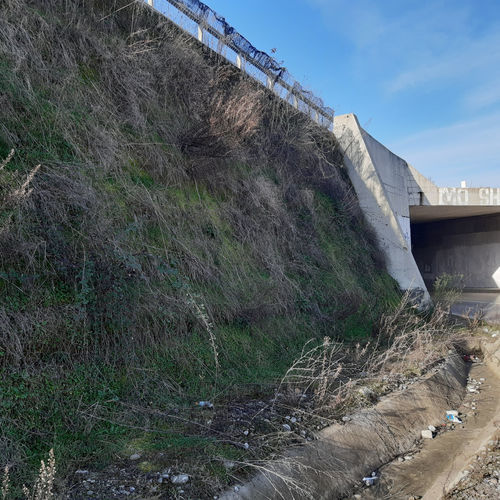

Vegetalizable retaining wall GREEN AFIWALL®

concretemodularprefab

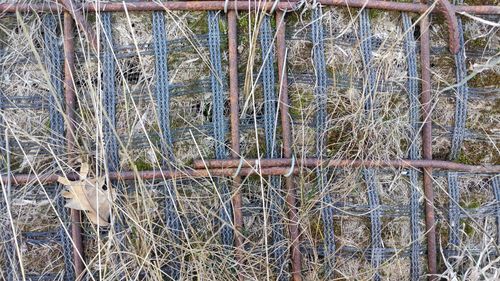

The construction of infrastructure sometimes requires working on very steep slopes. The AFIWALL® range offers various simple and rapid construction methods which provide a variety of solutions to complete these structures. The Green AFIWALL® technology is used as part of the development and revegetation of reinforced retaining structures. This solution consists of three products : A specifically designed reinforcing geosynthetic such as Notex® C with acrylic coating, reducing damage caused by installation A drainage geocomposite such as SOMTUBE® FTF to combat water ingress in the technical embankment Specific facing combining welded wire mesh with shuttering brackets Benefits An innovative and cost-effective solution consisting of 3 products supplied by AFITEXINOV for the facing, drainage and plantable reinforcement of the structure Construction of very high, stable retaining walls Installation of a geogrid with a mesh aperture conducive to revegetation Sustainable, maintenance-free revegetation, even in the event of steep gradients Better integration into the landscape Characteristics Maximum height : 33 m Good revegetation up to 70° gradient Hydroseeding recommended but not compulsory
