Extractor fan CAB SERIES

centrifugalductcommercial

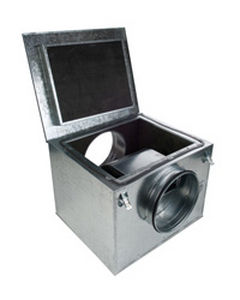

Acoustic cabinet fans manufactured from heavy gauge galvanised steel sheet and internally lined with 50 mm thickness of fireproof acoustic insulation (M0). Fan cover supplied with “quick-fix” fixings to enable fast removal and fitting, and a tight close. All models incorporate single phase direct-drive forward curved centrifugal fan. All cabinets can be installed outdoors as standard. Available, depending upon the model, with single motors in 2 or 4 poles. From CAB-125 to 250N, all motors are IP54, Class F, with ball bearings and thermal protection. CAB-315 and 400, all motors are IP44, Class F, with ball bearings and thermal protection. Electrical supply: Single phase 230V-50Hz. Speed controllable using voltage regulation.
