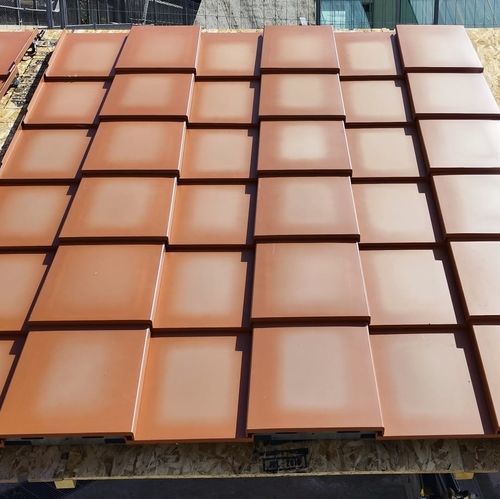

PV roof tile MARSIGLIESE

Marseillesglassmetal

Product Description
Flat photovoltaic tiles with tempered solar glass protection on a metal body.

Photovoltaic Embrice

• Solar Cell: Monocrystalline Half-Cut Cells 182 mm
• Photovoltaic Module: Glass + EVA + Monocrystalline Solar Cell + EVA + BLACK PET
• Support/Body: Pre-galvanized metal
• Body Coating: Powder coated
• Glass: Tempered glass with 3.2mm thickness, high light transmission, anti-reflective
• Junction Box: IP68, Class II (Double insulation), TUV Certification
• Connectors: TUV certified MCA
• Cable: 2 x 2.5mm² TUV certified
• Operating Temperature: -20° C to +80° C

Electrical Characteristics

• Peak Power at STC(Pmax/W): 22Wp
• Maximum Power Voltage(Vmp/V): 6 V
• Maximum Power Current(Imp/A): 3.67 A
• Efficiency: ≥24%

Mechanical Characteristics

• Dimensions: 46x44x45cm
• Weight: 3.8Kg

Photovoltaic Flat Tile

• Solar Cell: Monocrystalline Half-Cut Cells 182 mm
• Photovoltaic Module: Glass + EVA + Monocrystalline Solar Cell + EVA + BLACK PET
• Support/Body: Pre-galvanized metal
• Body Coating: Powder coated
• Glass: Tempered glass with 3.2mm thickness, high light transmission, anti-reflective
• Junction Box: IP68, Class II (Double insulation), TUV Certification
• Connectors: TUV certified MCA
• Cable: 2 x 2.5mm² TUV certified
• Operating Temperature: -20° C to +80° C

Electrical Characteristics

• Peak Power at STC(Pmax/W): 22Wp
• Maximum Power Voltage(Vmp/V): 6 V
• Maximum Power Current(Imp/A): 3.67 A
• Efficiency: ≥24%

Mechanical Characteristics

• Dimensions: 38x36x45cm
• Weight: 3.2Kg

Features / Technical Specifications

• Flat photovoltaic tiles
• Tempered solar glass protection
• Pre-galvanized metal body
• Powder coating
• 3.2mm tempered glass, high light transmission, anti-reflective
• IP68 junction box, Class II, TUV Certification
• TUV certified MCA connectors
• 2 x 2.5mm² TUV certified cable
• Operating Temperature: -20° C to +80° C
• Peak Power: 22Wp
• Maximum Power Voltage: 6 V
• Maximum Power Current: 3.67 A
• Efficiency: ≥24%
• Embrice Dimensions: 46x44x45cm
• Embrice Weight: 3.8Kg
• Flat Tile Dimensions: 38x36x45cm
• Flat Tile Weight: 3.2Kg
