PV roof tile POMPEI
rectangularsolarglass

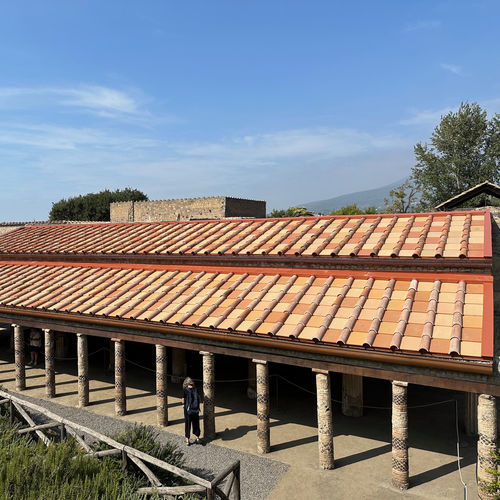

PV roof tile - POMPEI - AHLUX ITALIA SRL - rectangular / solar / glass
PV roof tile - POMPEI - AHLUX ITALIA SRL - rectangular / solar / glass
PV roof tile - POMPEI - AHLUX ITALIA SRL - rectangular / solar / glass - image - 2
PV roof tile - POMPEI - AHLUX ITALIA SRL - rectangular / solar / glass - image - 3
PV roof tile - POMPEI - AHLUX ITALIA SRL - rectangular / solar / glass - image - 4
PV roof tile - POMPEI - AHLUX ITALIA SRL - rectangular / solar / glass - image - 5
PV roof tile - POMPEI - AHLUX ITALIA SRL - rectangular / solar / glass - image - 6
PV roof tile - POMPEI - AHLUX ITALIA SRL - rectangular / solar / glass - image - 7
PV roof tile - POMPEI - AHLUX ITALIA SRL - rectangular / solar / glass - image - 8
PV roof tile - POMPEI - AHLUX ITALIA SRL - rectangular / solar / glass - image - 9
PV roof tile - POMPEI - AHLUX ITALIA SRL - rectangular / solar / glass - image - 10
PV roof tile - POMPEI - AHLUX ITALIA SRL - rectangular / solar / glass - image - 11
PV roof tile - POMPEI - AHLUX ITALIA SRL - rectangular / solar / glass - image - 12
Add to favorites
Compare this product
Go to the AHLUX ITALIA SRL website for more information

Characteristics

Shape
rectangular
Type
solar, PV
Material
metal, glass
Size
large, small
Color
beige
Length

18 cm, 49 cm
(7 in, 19 in)

Width

16 cm, 47 cm
(6 in, 19 in)

Description

General Description
  • Photovoltaic tiles with tempered solar glass protection on a metal body.

Embrice Photovoltaic
  • Solar cell: Monocrystalline Half-Cut 182 mm cells
  • Photovoltaic module: Glass + EVA + Monocrystalline solar cell + EVA + BLACK PET
  • Support/Body: Pre-galvanized metal
  • Body coating: Powder coated
  • Glass: Tempered glass with 3.2mm thickness, high light transmission, anti-reflective
  • Junction box: IP68, Class II (Double insulation), TUV certified
  • Connectors: TUV certified MC4
  • Cable: 2 x 2.5mm² TUV certified
  • Working temperature: -20° C to +80° C

Electrical Characteristics Embrice
  • Peak power at STC(Pmax/W): 31Wp
  • Maximum power voltage(Vmp/V): 6 V
  • Maximum power current(Imp/A): 5.17 A
  • Efficiency: ≥24%

Mechanical Characteristics Embrice
  • Dimensions: 49x47x60cm
  • Weight: 5.5Kg

Coppo Photovoltaic
  • Solar cell: Monocrystalline Half-Cut 182 mm cells
  • Photovoltaic module: Glass + EVA + Monocrystalline solar cell + EVA + PET
  • Support/Body: Pre-galvanized metal
  • Body coating: Powder coated
  • Glass: Tempered glass with 3.2mm thickness, high light transmission, anti-reflective
  • Junction box: IP68, Class II (Double insulation), TUV certified
  • Connectors: TUV certified MC4
  • Cable: 2 x 2.5mm² TUV certified
  • Working temperature: -20° C to +80° C

Electrical Characteristics Coppo
  • Peak power at STC(Pmax/W): 19Wp
  • Maximum power voltage(Vmp/V): 6 V
  • Maximum power current(Imp/A): 3.17 A
  • Efficiency: ≥24%

Mechanical Characteristics Coppo
  • Dimensions: 16x18x60cm
  • Weight: 1.2Kg

Features / Technical Specifications
  • Photovoltaic tiles with tempered solar glass protection
  • Pre-galvanized and powder-coated metal body
  • 3.2mm anti-reflective tempered glass
  • Module efficiency: ≥24%
  • Junction box protection class: IP68, Class II
  • TUV certified MC4 connectors
  • Working temperature: -20° C to +80° C
  • Available in Embrice version (31Wp, 49x47x60cm, 5.5Kg) and Coppo version (19Wp, 16x18x60cm, 1.2Kg)
