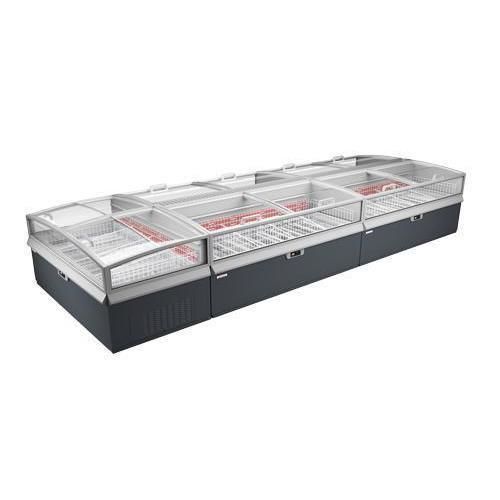

Island refrigerated display case MONTREAL SLIM

for shopmetalwith sliding door

Product overview
MONTREAL Slim is a slim plug-in refrigerated display cabinet designed for small retail spaces. It offers a maximum visible display area within its range and is available in slide and push lid variants for optimized product presentation and access.

Environment and climate
Units are free of CFCs and HFCs and use the natural refrigerant propane (R290), reducing environmental impact and complying with modern refrigerant standards.

Intelligent installation
Ready-to-connect (full plug-in) installation enables immediate commissioning. The outer-skin condenser design minimises maintenance. Cabinets are available as in-line and end units and can be combined with overhanging KINLEY XL or KINLEY X5 modules.

Semi-automatic defrosting
Semi-automatic defrosting is supported across all temperature ranges. The constant-temperature control and high-quality plastic containers support product hygiene and shelf life. The plastic interior drip tray facilitates cleaning.

Highlights

• 01 - Largest display area: MONTREAL SLIM SLIDE and MONTREAL SLIM PUSH provide extensive visible presentation thanks to large glass side panels.
• 02 - Product accessibility: Slide and push lid options ensure optimal access to goods during stocking and customer service.
• 03 - Design: Linear, contemporary appearance integrates into diverse store concepts; colours and surfaces can be customised.
• 04 - Energy savings: Electronically controlled variable-speed compressor reduces power consumption by approx. 25%; the energy-saving fan saves about 0.5 kWh per day.

Additional information

• Compatible with AMS: Active Monitoring System (AMS) available for remote monitoring and proactive fault detection.
• Individual branding: Custom branding can be applied during production according to customer templates.
• Accessories: Wide range of accessories available to extend functionality and presentation.

Technical specifications

• Temperature ranges:
  Cooling (1): +3 °C to +15 °C
  Freezing: −18 °C to −23 °C
  Mincemeat / meat chilling: 0 °C to +2 °C
  (1) Fixed preset that can be changed by a service technician.
• Refrigerant: Propane (R290), CFC- and HFC-free.
• Installation: Ready-to-connect (full plug-in). Outer-skin condenser for low-maintenance operation.
• Versions: Available as in-line and end cabinets; optionally end cabinet on both sides; extendible with commercial shelf attachments.
• Defrosting: Semi-automatic defrosting in all temperature ranges. Plastic interior drip tray for easy cleaning.
• Display & access: Largest display area within the AHT range; large glass side panels; slide and push lid variants for optimal access.
• Energy & performance: Electronically controlled variable-speed (VS) compressor (≈−25% power consumption vs. conventional multi-unit systems); energy-saving fan (~0.5 kWh saved per day).
• Compatibility: Compatible with AHT AMS for monitoring and management.
• Customization: Individual branding applied during production; broad accessory options.
• Energy efficiency: Declared classes depend on specific variant and configuration.
