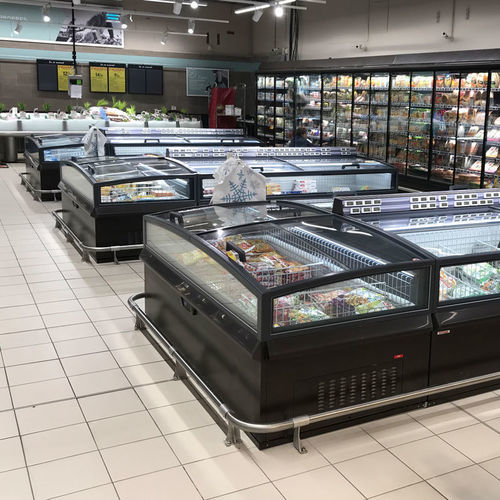

Island refrigerated display case MONTREAL XL

for shopmetalwith sliding door

Overview
Elegant design with largest display area. With generously sized glass side panels and LED interior lighting, MONTREAL XL guarantees perfect product visibility. The smooth-running sliding cover and easy removal of the goods on display improve accessibility and sales.

Key features

• R290 refrigerant
• Full plug-in solution
• Refrigerating & Freezing variants
• Generous glass display area with LED interior lighting
• Smooth-running sliding/push-pull lid for easy product removal
• Height- and width-adjustable product racks
• Protective bumper strip with integral price display
• Can be used by two people simultaneously (wide access)

Visual merchandising
Vertical glass panels on three sides of the end cabinet provide excellent visibility. The smooth-running push-pull lid ensures easy removal of merchandise. Height- and width-adjustable racks, LED lighting and the protective bumper strip with price display allow perfect product presentation.

High energy savings
The electronically controlled, variable-speed compressor (VS) reduces power consumption by up to 25% compared to conventional multi-unit systems. The new energy-saving fan reduces daily energy consumption further.

Intelligent installation
Ready-to-connect installation enables immediate use. The outer-skin condenser provides maintenance-free refrigeration. Available as in-line and end cabinets and can be combined with overhanging KINLEY XL or KINLEY X5 units.

MONTREAL XL Highlights

• XL volume: offers approximately 20% more interior volume than the MONTREAL Slim model (e.g. fits three frozen pizzas lengthwise)
• Design: linear, contemporary design with the largest display area among AHT refrigerators/freezers; colours and surfaces can be adapted
• Product accessibility: slide and push lid variants ensure best possible access to goods
• Semi-automatic defrosting: possible in all temperature ranges; constant temperature and hygienic plastic containers; easy-clean plastic interior drip tray

Additional information

• Compatible with AHT Active Monitoring System (AMS) for remote monitoring and proactive fault detection
• Individual branding: units can be custom-designed and applied during production
• Wide range of accessories available

Technical specifications
Cooling (1)
+3 °C to +15 °C
Freezing
–18 °C to –23 °C
Mincemeat/meat chilling
0 °C to +2 °C
(1) Fixed preset that can be changed by a service technician

Technical data

• Refrigerant: R290
• Operation modes: Refrigerating and Freezing
• Temperature ranges: Cooling +3 °C to +15 °C; Freezing –18 °C to –23 °C; Mincemeat/meat chilling 0 °C to +2 °C
• Compressor: electronically controlled, variable-speed (VS) for up to 25% energy saving
• Fan: energy-saving fan (saves approx. 0.5 kWh per day)
• Installation: full plug-in, ready-to-connect; outer-skin condenser (maintenance-free)
• Variants: in-line and end cabinets; extendible with commercially available shelf attachments
• Display/access: vertical glass panels on 3 sides, sliding/push-pull lids, adjustable product racks, LED interior lighting
• Defrost: semi-automatic defrosting across temperature ranges
• Volume: ~20% larger interior volume vs MONTREAL Slim
• Compatibility: combinable with KINLEY XL / KINLEY X5 and compatible with AMS
