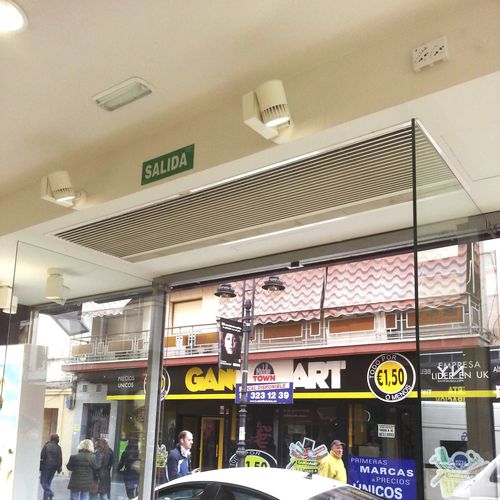

Recessed air curtain DAM

commercialindustrialfor suspended ceilings

DAM is an air curtain from the standard range that stands out for its versatility and the design that can be fitted into a false ceiling, with a full view of the diffuser grille. The air intake grille is maintenance-free and is integrated into a single white frame, or the one you prefer on request. Compact and low profile recessed air curtain with full grille view. Self-supporting casing construction made of galvanized steel plate, ready to be installed recessed in a false ceiling. Inlet grille (free of maintenance) made with aluminium profiles and blow-out nozzle, integrated in a single white frame colour RAL 9016. Other colours are available on request. Double-inlet centrifugal fans driven by an external rotor motor and low noise level. 5-speed selector. EC models assembled with very low consumption efficiency fans. “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil. Includes Plug&Play control with 7m RJ45 cable and infrared remote control. Optional: Clever control (programmable, automatic, intelligent, energy saving, Modbus RTU for BMS…)
